Simplify Ferrous Corrosion Inspection
Transform your corrosion inspection procedures with the STIX - Magnetic Corrosion Scanner. This innovative device allows you to maneuver phased array probes along ferrous piping and vessels with unparalleled accuracy. Equipped with a state-of-the-art positional and index encoder, the STIX guarantees precise and dependable inspections, revolutionizing how you assess corrosion.
Note: The HydroFORM Cart is sold separately. To accommodate the HydroFORM Cart, you will need 8 mm (0.315 in) probe pivot buttons. These buttons are specifically designed to fit the HydroFORM Cart and ensure optimal performance.

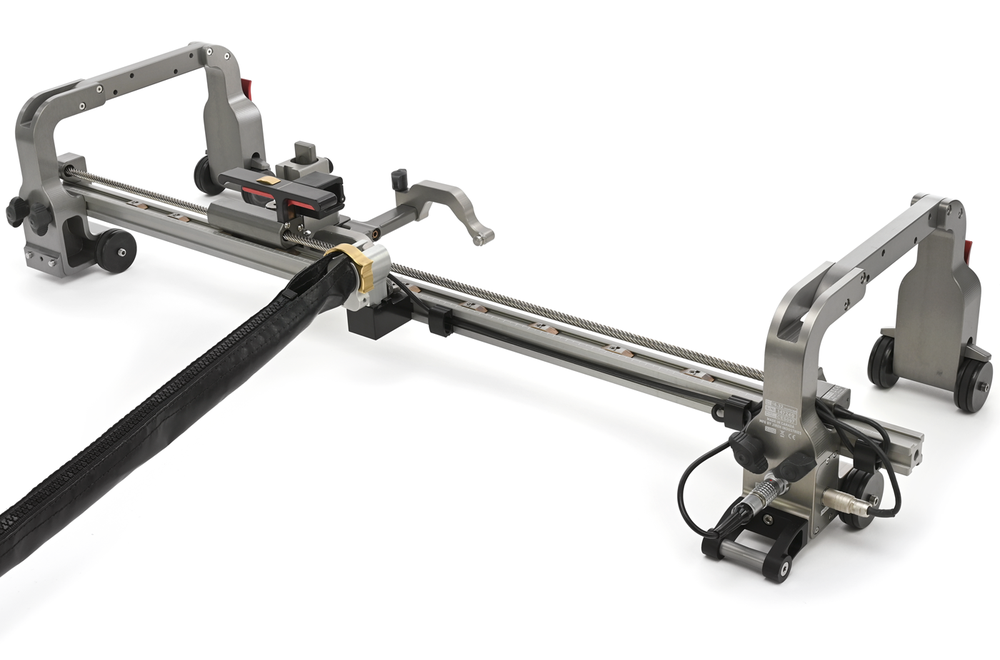

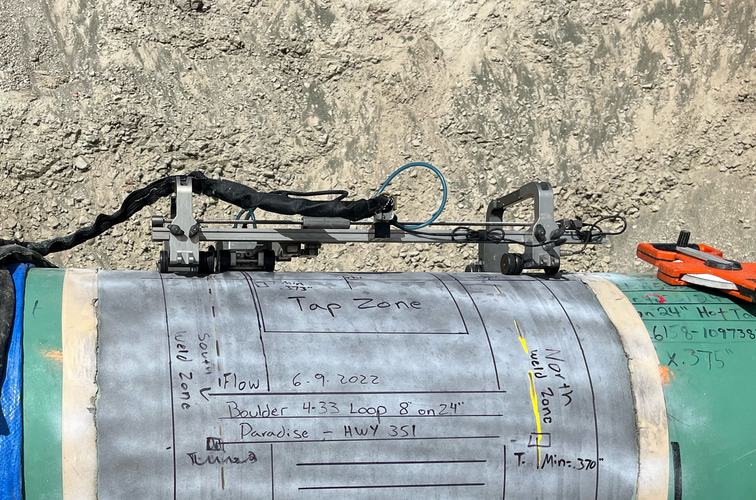

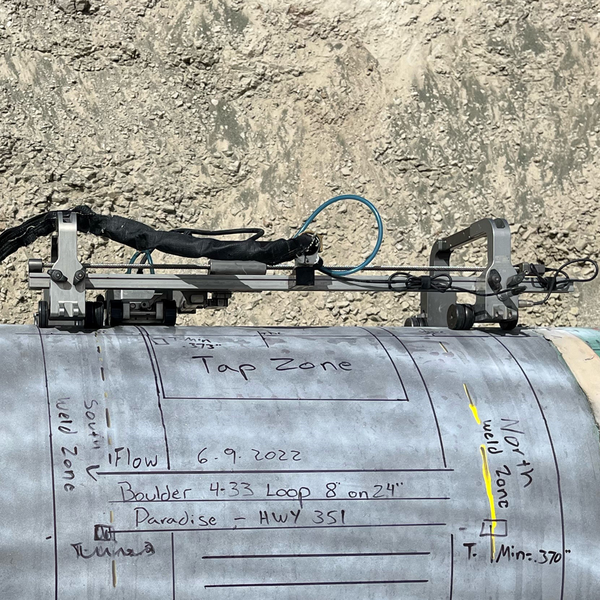

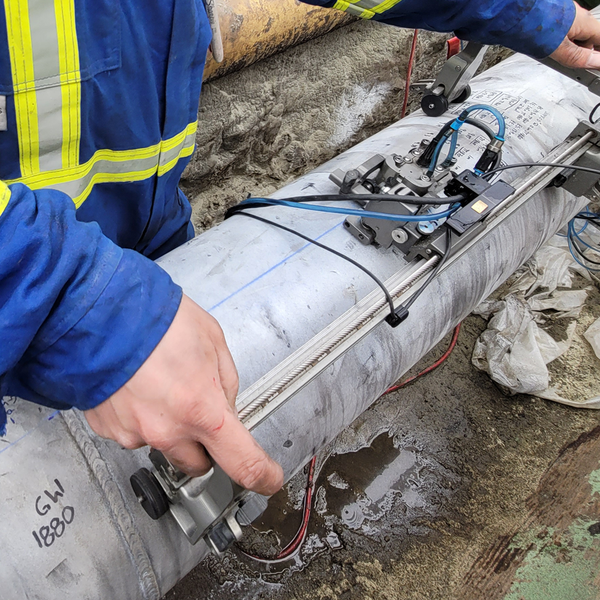

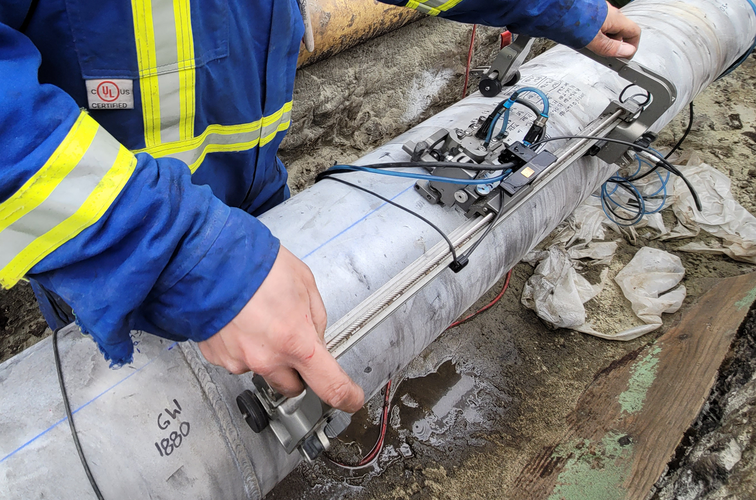

Customer Photos
Videos
Features
Corrosion Inspection
Conduct precise corrosion scans with this magnetic scanner effortlessly, offering manual encoded probe positioning on ferrous inspection surfaces.
Scan Control
The carrier, to which the heavy duty probe holder is attached, features a locking handle that aligns the probe's scanning direction. Lift the handle and move the carrier to the next index position, which can be adjusted based on the probe size to align with the following scanning path.
Positional Encoding
The corrosion link incorporates high-resolution positional encoding that is universally compatible with all standard instruments. This feature allows you to track scans along the y-axis at the predetermined positions of the frame bar.
Magnetic Wheels
The magnetic wheels are coated with urethane to minimize the impact of foreign debris hindering the scanner's motion. Extra magnetic wheels can be attached to the scanner if necessary to enhance the magnetic attraction even further.
Heavy Duty Vertical Probe Holder
The heavy duty vertical probe holder is designed to accommodate large probes and is fully compatible with the Olympus HydroFORM system when utilized alongside the HydroFORM Cart.
Brakes
The scanner's brakes are specifically engineered to firmly secure the device in place when required.
Cable Management
The cable clips are designed to be conveniently removable, allowing users to arrange and manage probe cables and irrigation tubes on the scanner as needed. This feature enables users to customize their setup for optimal organization and efficiency.
Three Year Warranty
All JIREH equipment is meticulously manufactured with durability in mind, ensuring a long-lasting performance. Additionally, each piece of equipment is backed by a comprehensive 3-year limited warranty, providing you with added peace of mind and confidence in the quality and reliability of your investment.

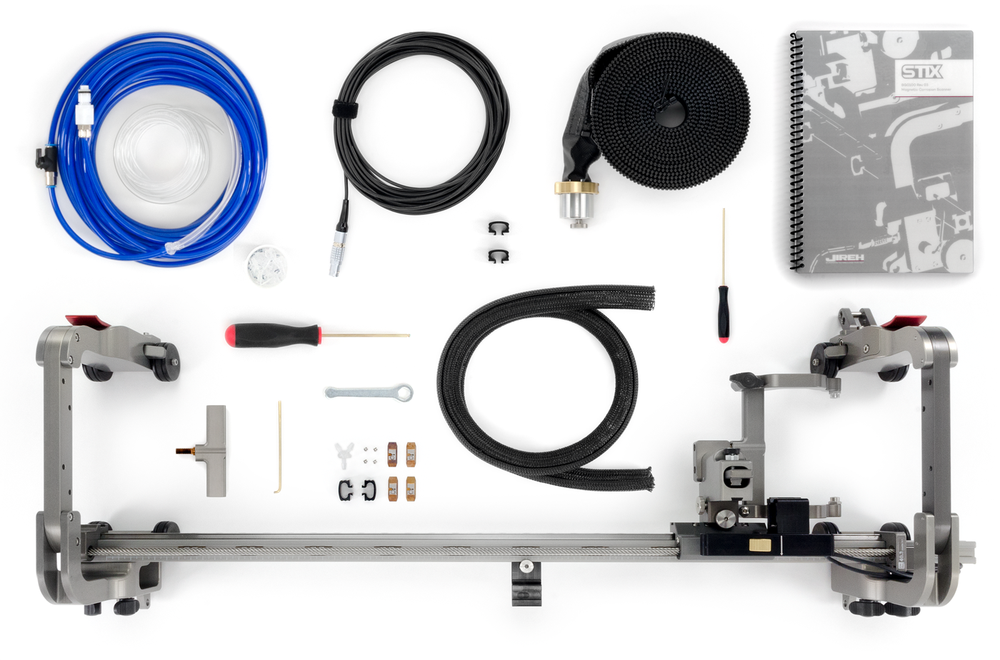

Kit Contents
SCANNER
STIX frame, 75 cm (29.5 in) frame bar with ruler
PARTS & ACCESSORIES
Heavy duty vertical probe holder with wide yoke
Index encoder
Encoder cable, 7.5 m (24.6 ft)
Small yoke for heavy duty vertical probe holder
4 mm ID irrigation kit (7/16 in quick connect)
Cable management, dovetail mount, 7 m (22.9 ft)
Corrosion scanner spare parts kit
Sleeving 100 cm (39.4 in)
Cable clips x2
User manual
Setup chart

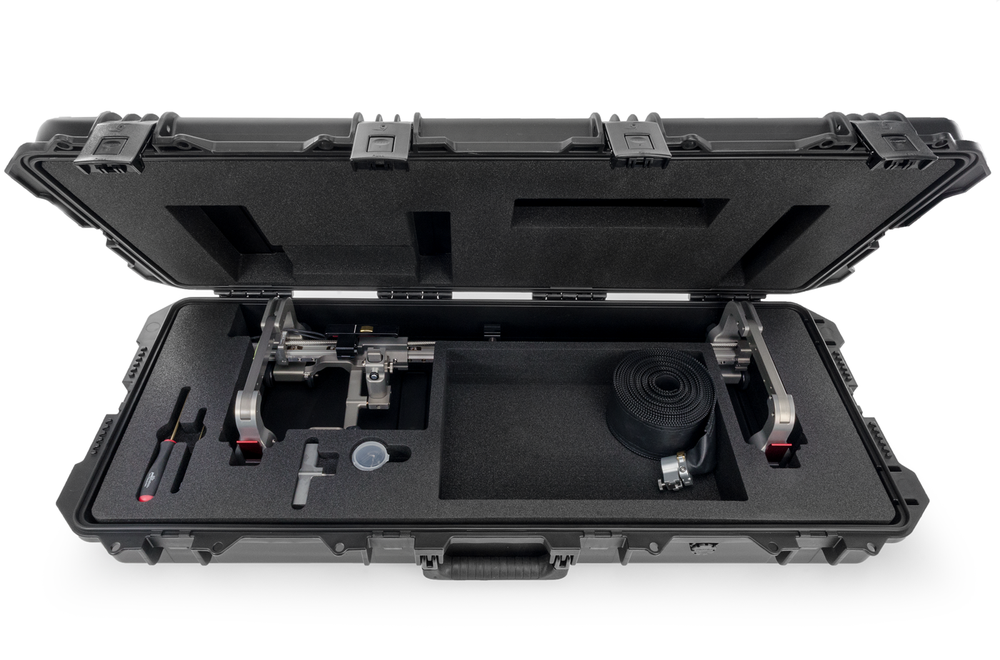

Rugged carrying case
TOOLS
3 mm hex driver
2 mm hex driver
2 mm hex wrench
Wrench for pivot button adjustment
Component Identifcation
Heavy Duty Vertical Probe Holder
The heavy-duty vertical probe holder boasts exceptional adjustability, allowing it to adapt to a wide range of probe and wedge sizes and various scan directions. This flexibility makes it incredibly versatile, accommodating a seemingly infinite number of configurations to meet your specific inspection needs. Moreover, it is designed to be compatible with the HydroFORM cart, providing convenient mobility for carrying the Olympus HYDROFORM equipment.

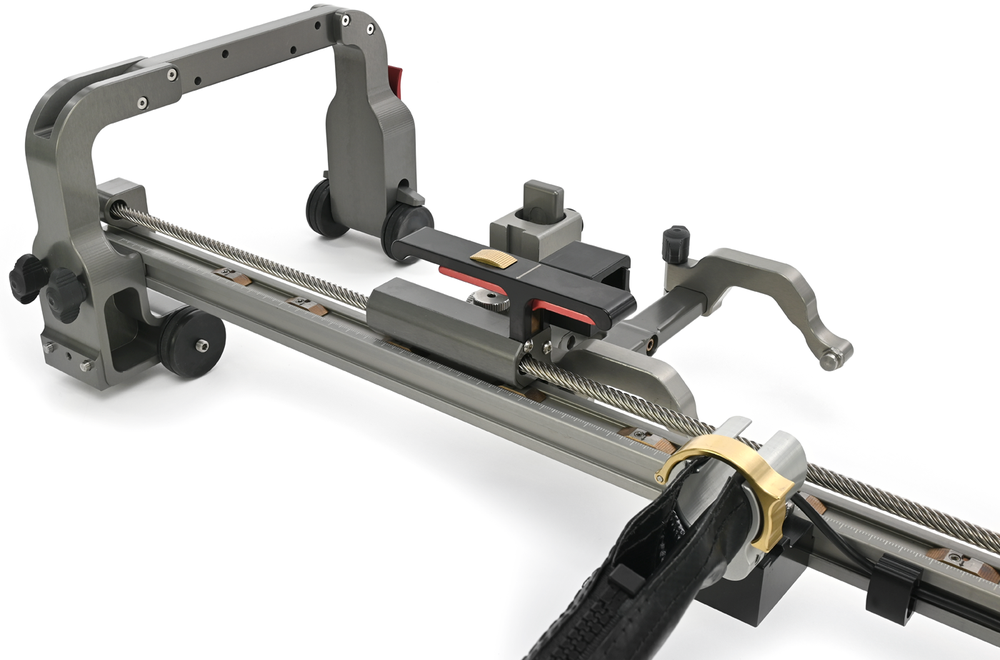

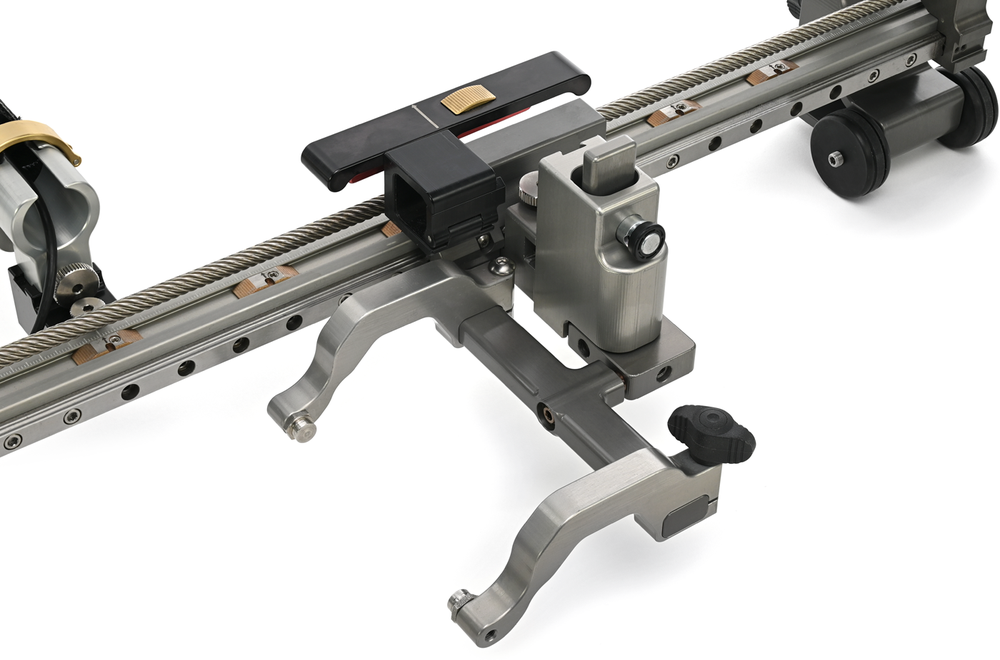

Carrier
The carrier slides effortlessly along the scanner stroke with locking options and cable management, securely holding the heavy-duty vertical probe holder.
Over-the-top Link
The over-the-top link houses the positional encoder and connects to the user instrument, whereas the opposing link remains unencoded. Working in unison, they form the structural core of the scanner, providing ample clearance for the carrier and probe holder to operate beneath them.
Y-Axis Encoder
The y-axis encoder monitors and tracks the probe's position along the frame bar.
Encoder Cable
The encoder cable is designed to be compatible with most industry-standard instruments, transmitting the X and Y positional information to the user's equipment.
Magnetic Wheels
Magnetic wheels are used to attach the scanner to ferrous surfaces. More wheels can be added to the scanner to enhance the magnetic attraction.

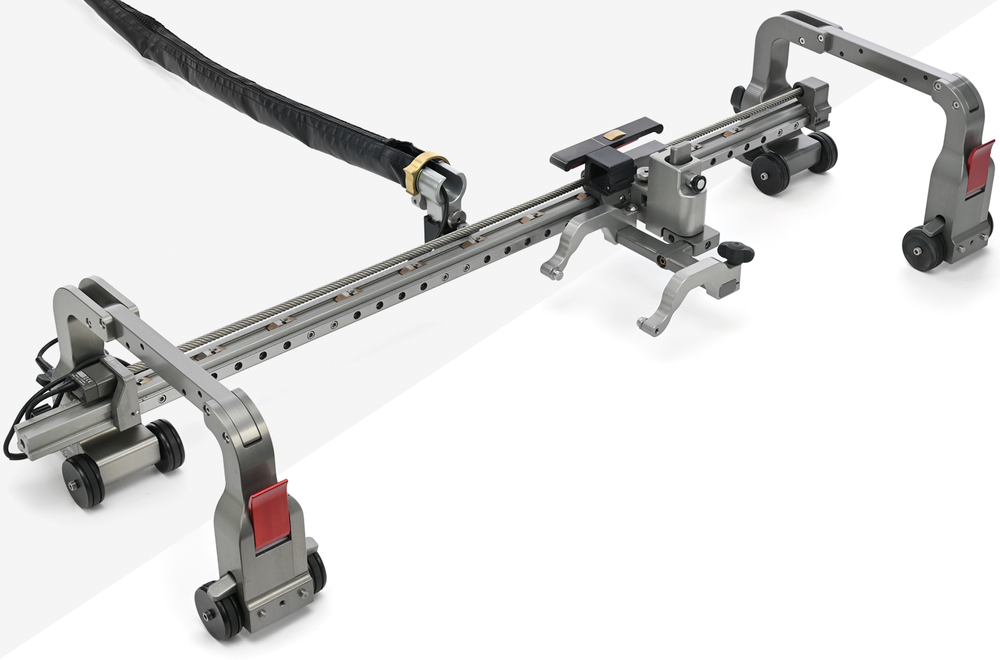

Scanner Frame
Preset scan positions are integrated into the frame bar, allowing the carrier and probe holder to move along the stroke length.
Cable Management
Cable management helps organize and protect cables and tubes. Using cable clips and implementing cable management on the carrier further enhances the scanner's organizational capabilities.
Parts & Add-Ons
Related Products
Specifications
GENERAL
Pipe Range, Circumferential: 10.2 cm to flat (4 in to flat)1
Encoder Resolution: 16.32 counts/mm (414.5 counts/inch)
Index Resolution: 40.31 counts/mm (1023.9 counts/inch)
Probe Holding Capacity: 1 heavy duty vertical probe holder
Encoder Cable Length: 7.5 m (24.6 ft)2
Inspection Surface: Ferrous
RADIAL CLEARANCE

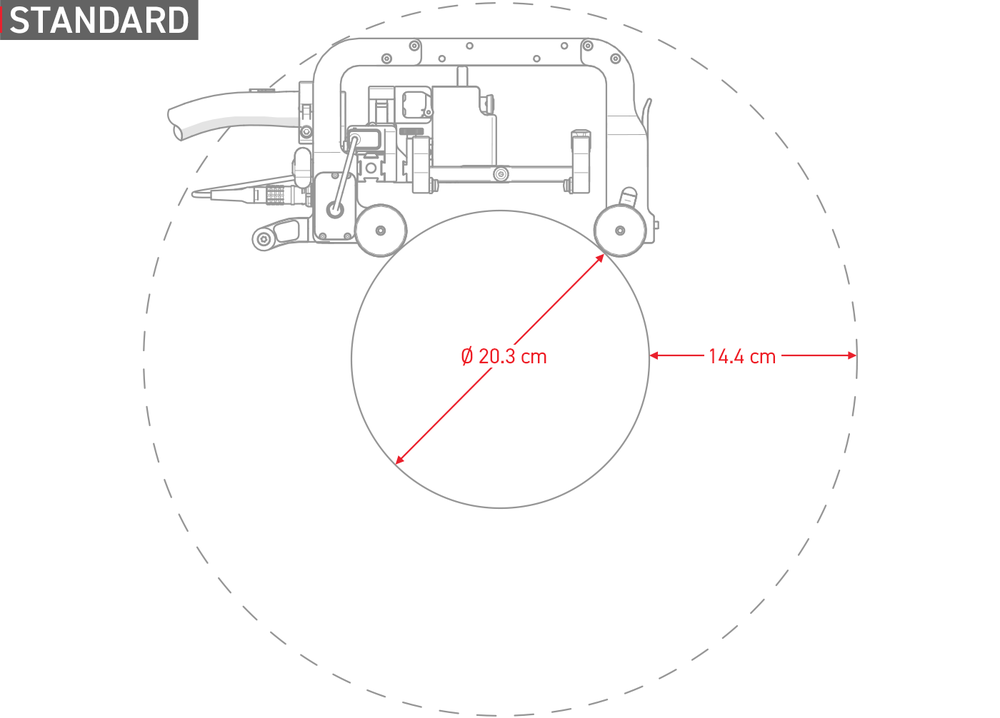

Standard Radial Clearance: 14.4 cm (5.6 in)

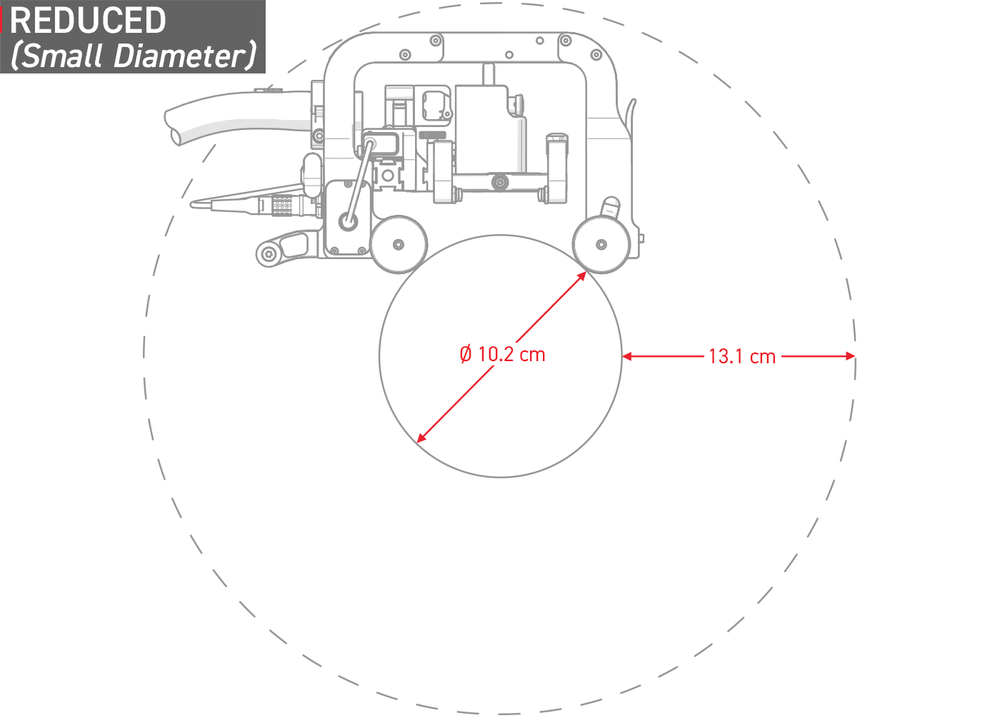

Reduced Radial Clearance: 13.1 cm (5.14 in)
SIZE & WEIGHT

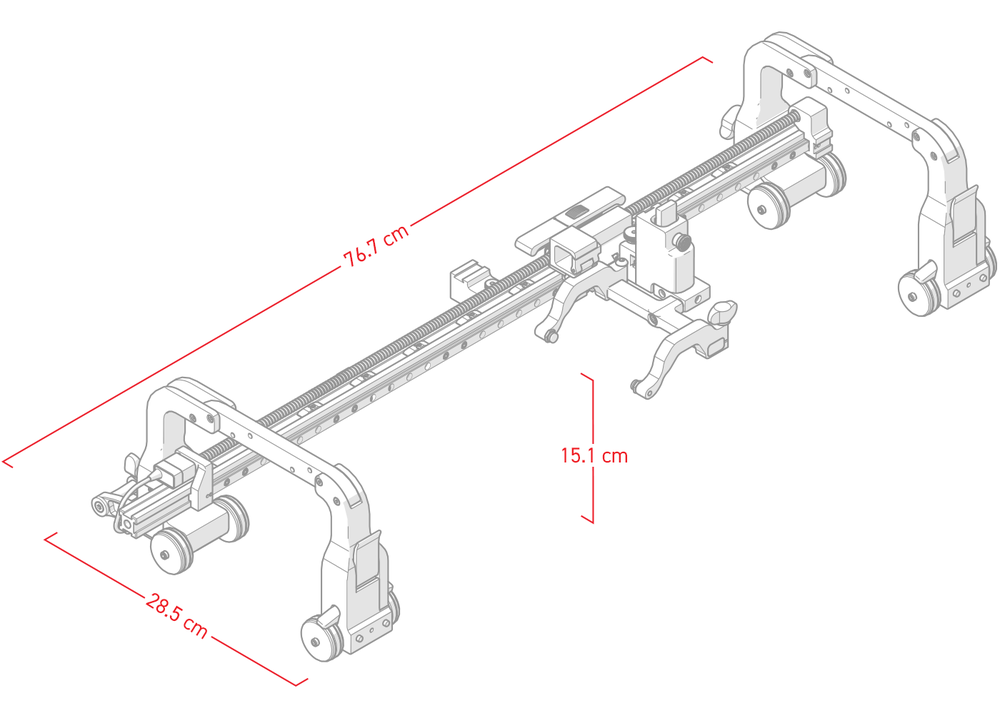

Scanner Width: 76.7 cm (30.2 in)
Scanner Depth: 28.5 cm (11.2 in)
Scanner Height: 15.1 cm (5.9 in)
Scanner Weight: 3.9 kg (8.6 lb)
ENVIRONMENTAL SPECIFICATIONS
Operating Environment: -20°C (-4°F) to 50°C (122°F)
Environmental Sealing: Dust-tight, watertight (not submersible)
HEAVY DUTY VERTICAL PROBE HOLDER SPECIFICATIONS
Standard Yoke
Minimum Wedge Width: 17.4 mm (0.69 in)
Maximum Wedge Width: 55 mm (2.17 in)
Standard Length: 63.5 mm (2.5 in)
Wide Yoke
Minimum Wedge Width: 17.4 mm (0.69 in)
Maximum Wedge Width: 93.8 mm (3.69 in)
Wide Length: 63.5 mm (2.5 in)
PROBE HOLDER PIVOT BUTTONS
Pivot Hole Size: 8.0 mm (0.315 in)
Wedge Type: Olympus PA
Hex Size: 9.53 mm (3/8 in)
- 10.2 cm (4 in) diameter scanning is only made possible when using the reduced width of the corrosion link
- Custom encoder cable lengths are available.
- Both yoke styles are included in this kit.
Technical specifications are subject to change.
