Simplify inspections with our compact scanner, which is perfect for situations where a minimal footprint is essential.
Experience the convenience and efficiency of the ROTIX - Reduced Width Scanner, specifically designed to minimize the amount of insulation or coating that needs to be removed from pipes for inspection. With its innovative scanner body, this product can operate in as little as 10 cm (3.94 in) of width during single probe scanning. Even dual-probe scanning requires a width of 25 cm (9.84 in), saving you time and effort in preparing the pipe for inspection. With integrated positional encoding and a QuickLink system that permits scanning on a variety of diameters on both ferrous and non-ferrous surfaces, streamline your inspection process like never before with the ROTIX scanner.

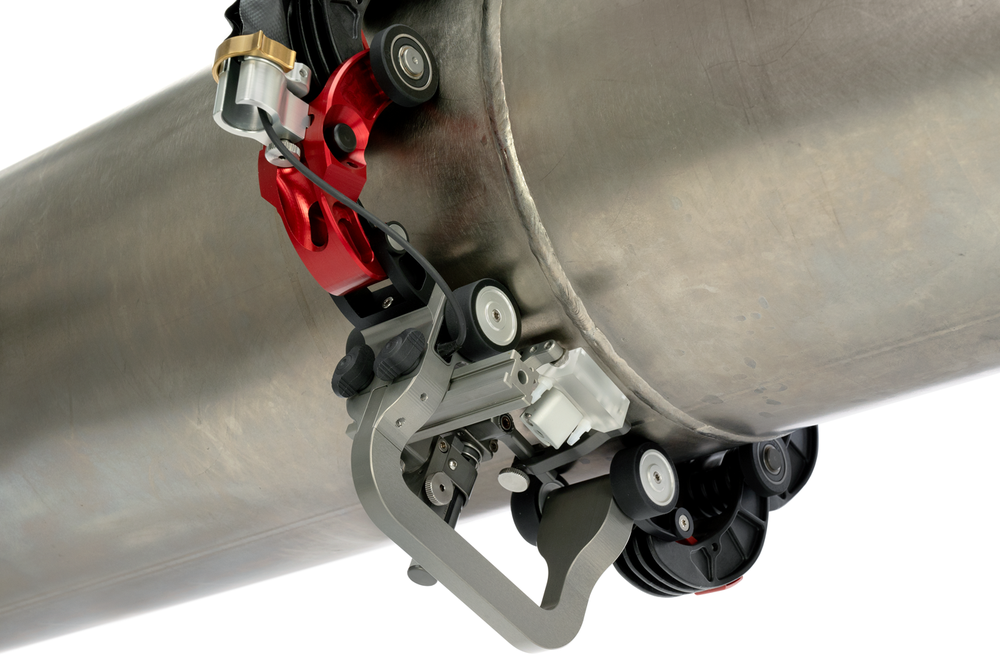

Features

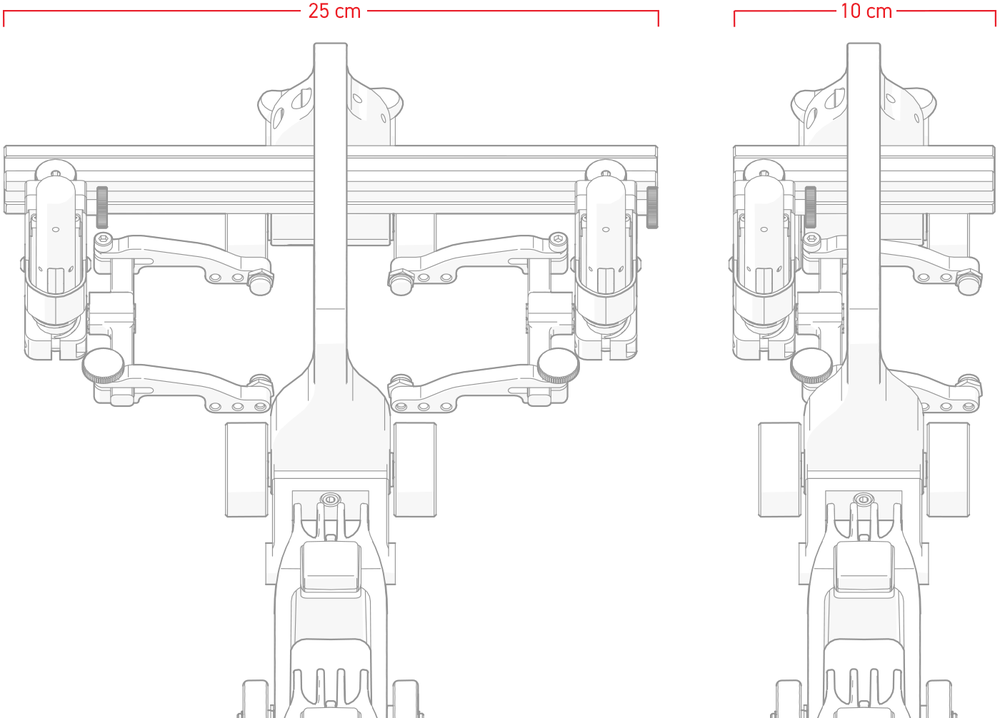

Minimal Footprint
Single-probe scanning requires a width of only 10 cm (3.94 in), while dual-probe scanning can be achieved with a width of only 25 cm (9.84 in).
Adjustable Chain
Inspect pipe diameters of 10.7 - 96.5 cm (4.2 in - 38 in) with the QuickLinks designed to be added or removed easily.
QuickLinks
Designed for ease of use and convenience, Quicklinks connect quickly and securely without complicated tools or lengthy processes. Just latch them together, and you're good to go. The user-friendly design also means you can effortlessly disconnect QuickLinks by simply pressing a button. No more struggling with complicated disassembly or dealing with frustrating connectors.
Integrated Encoder
A positional X-Axis encoder is integrated into the Reduced Width Link. This allows for precise and accurate scanner position. The encoder output user selected to be fully compatible with all standard instruments.

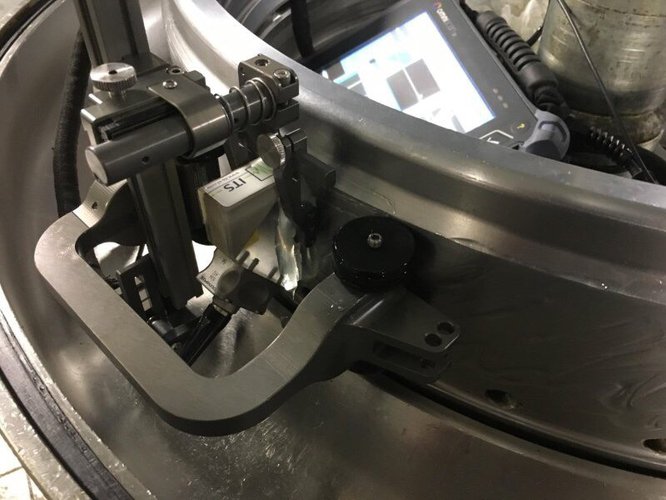

Vertical Probe Holder
Extremely versatile vertical probe holders position the probes as required next to the weld. Near infinitely adjustable, the included vertical probe holders are compatible with most third-party wedges.
Warranty
At JIREH, we take pride in the reliability and craftsmanship of our products. We understand that our customers rely on our equipment for their critical operations, which is why we stand behind our brand with a limited 3-year warranty.

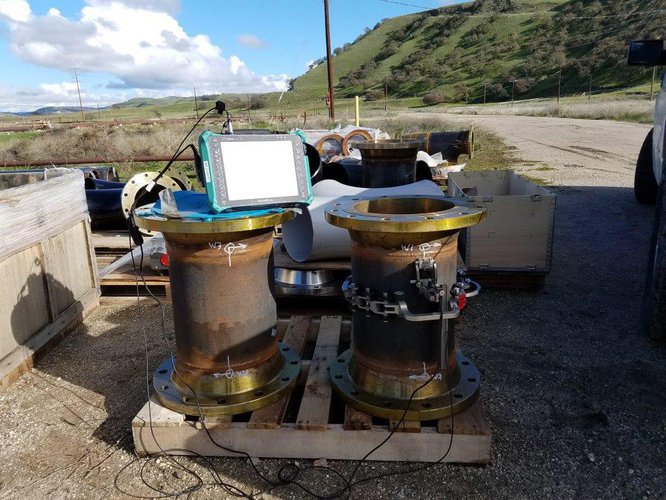

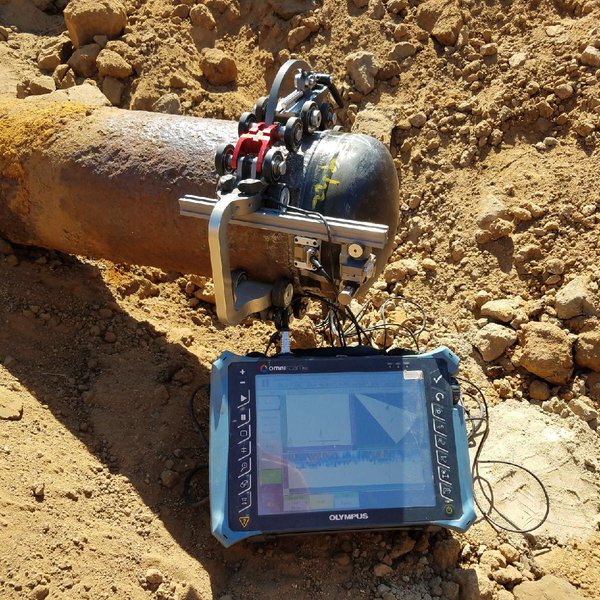

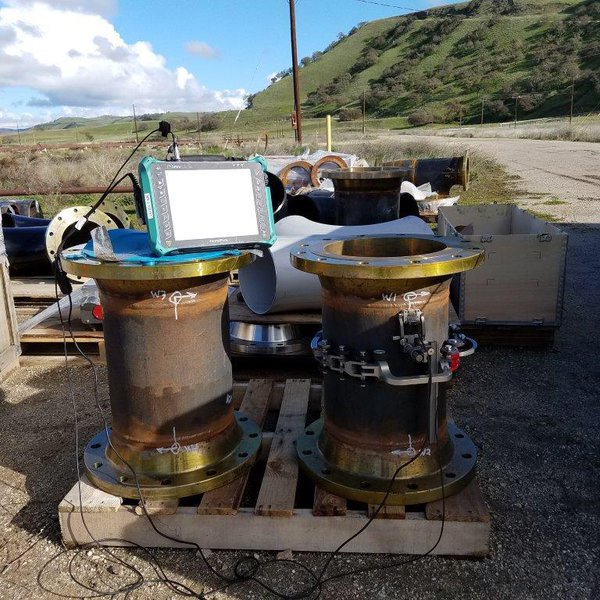

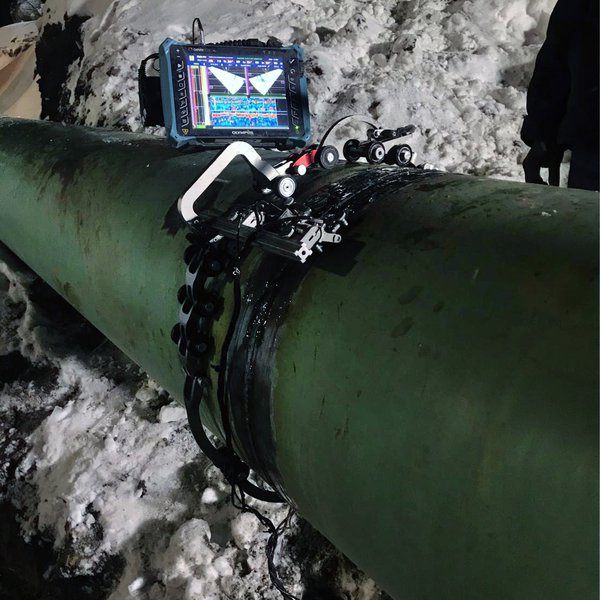

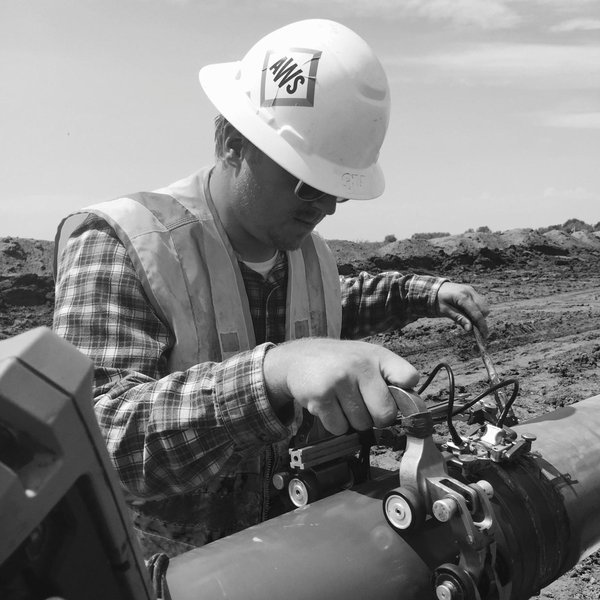

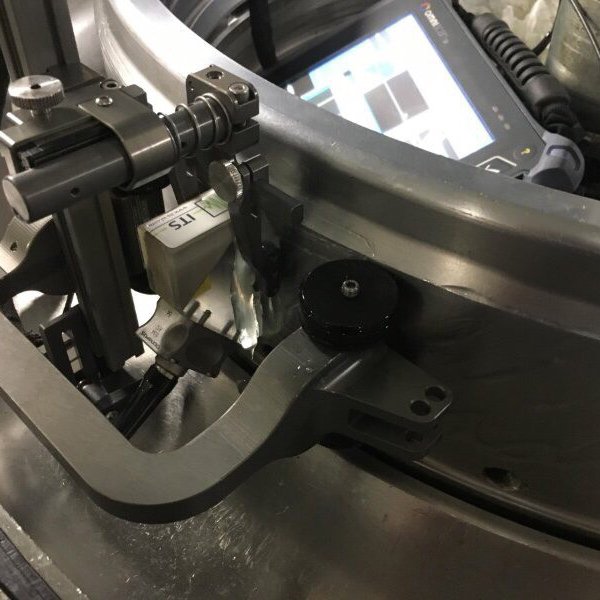

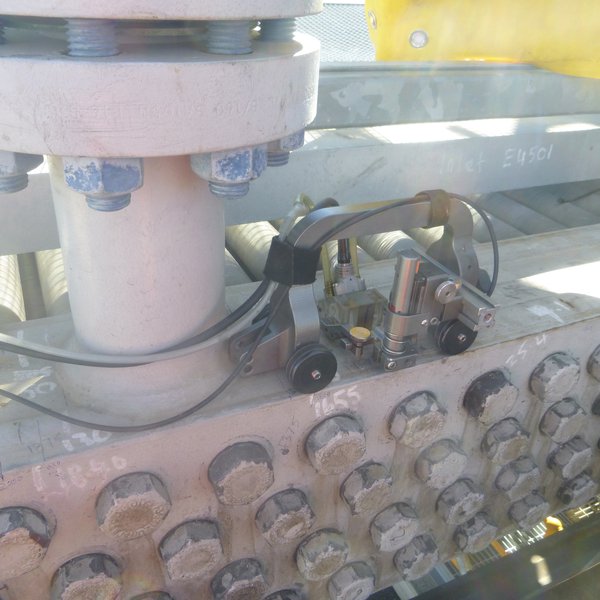

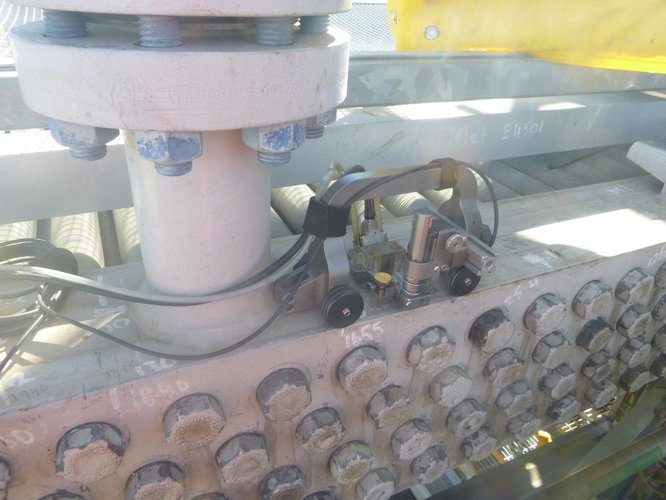

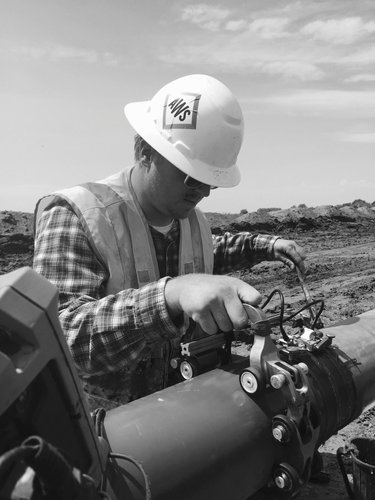

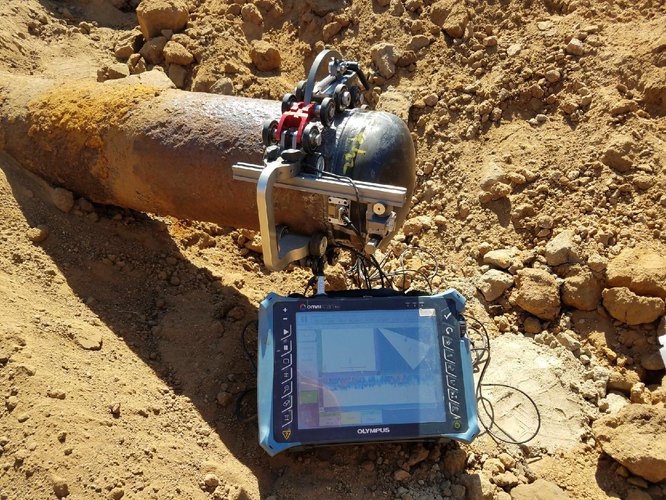

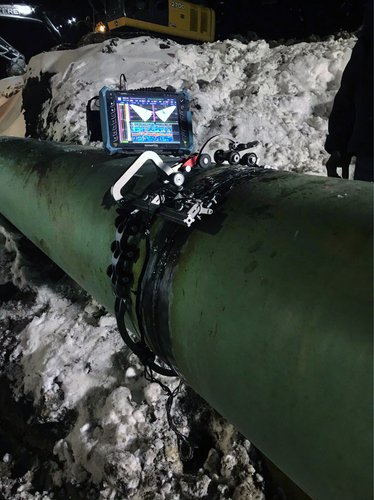

Customer Photos

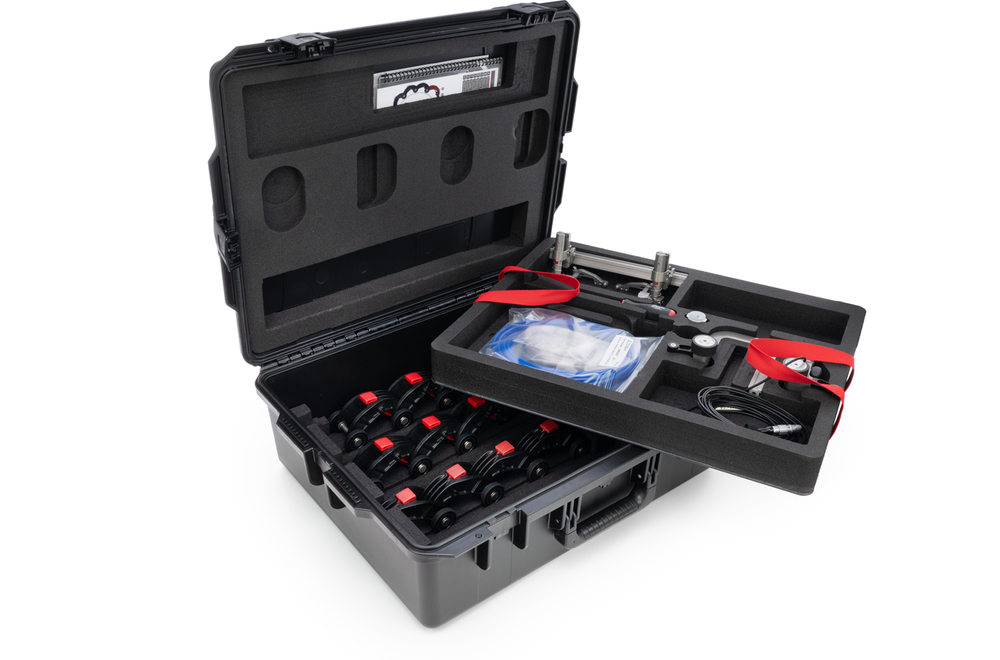

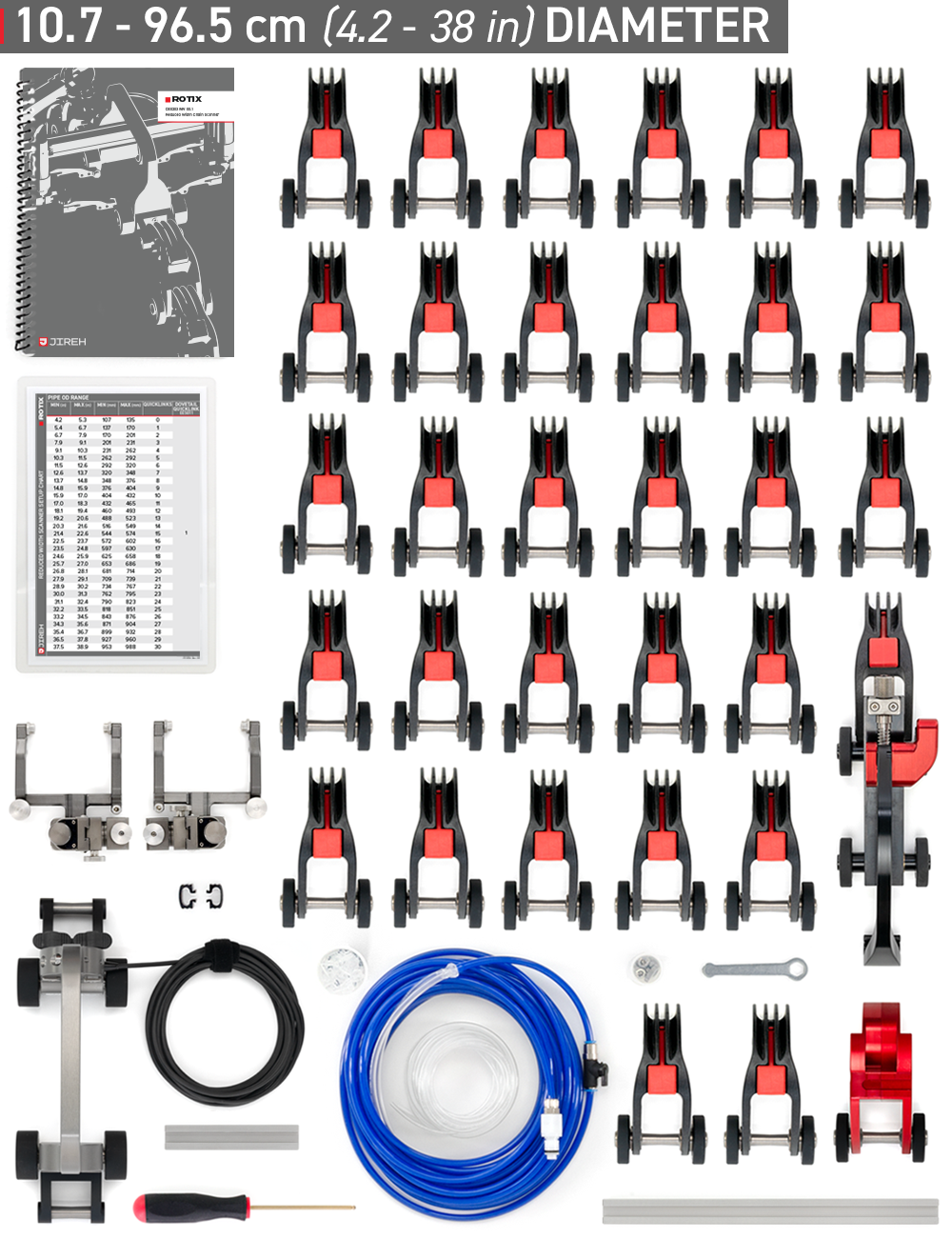

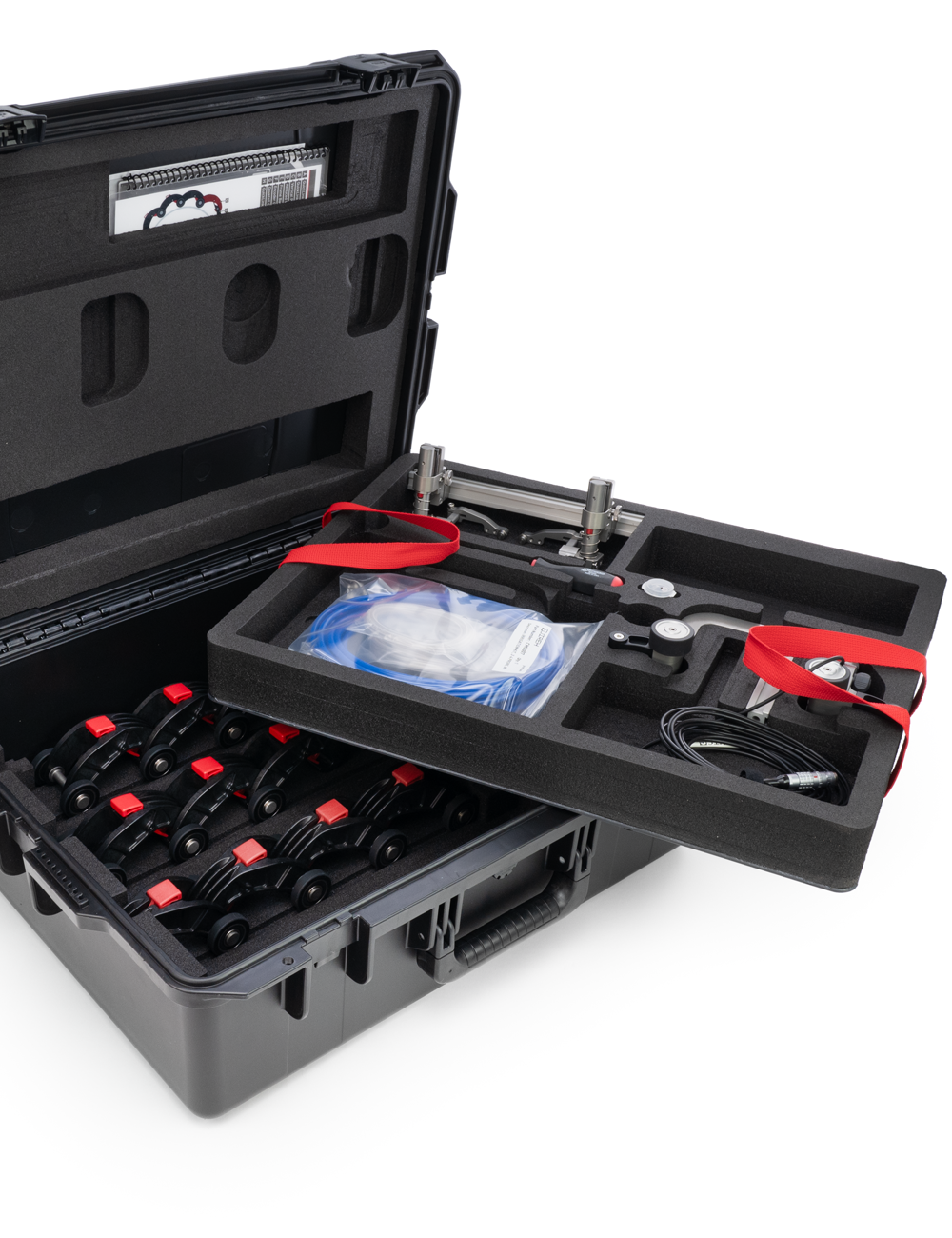

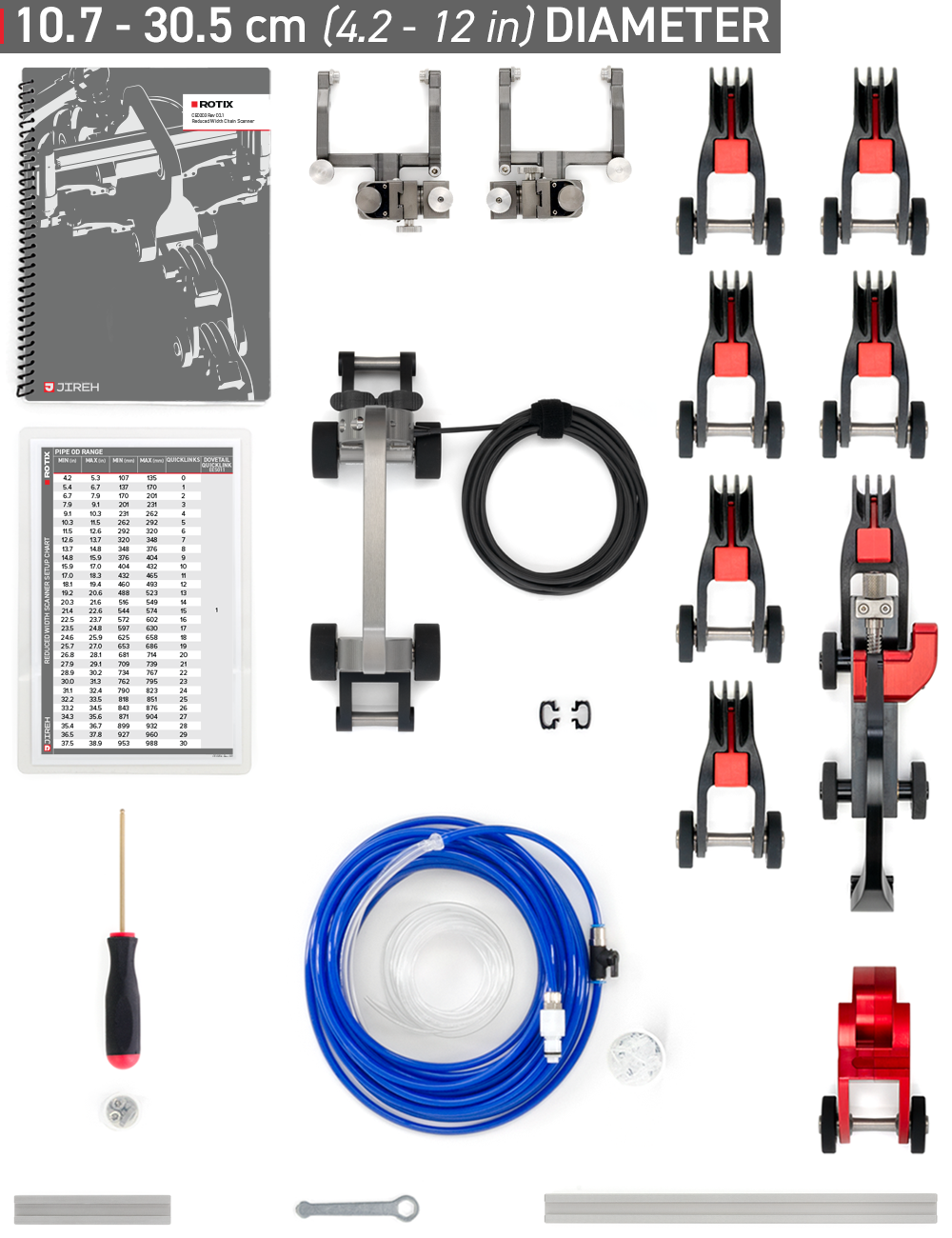

Kit Contents

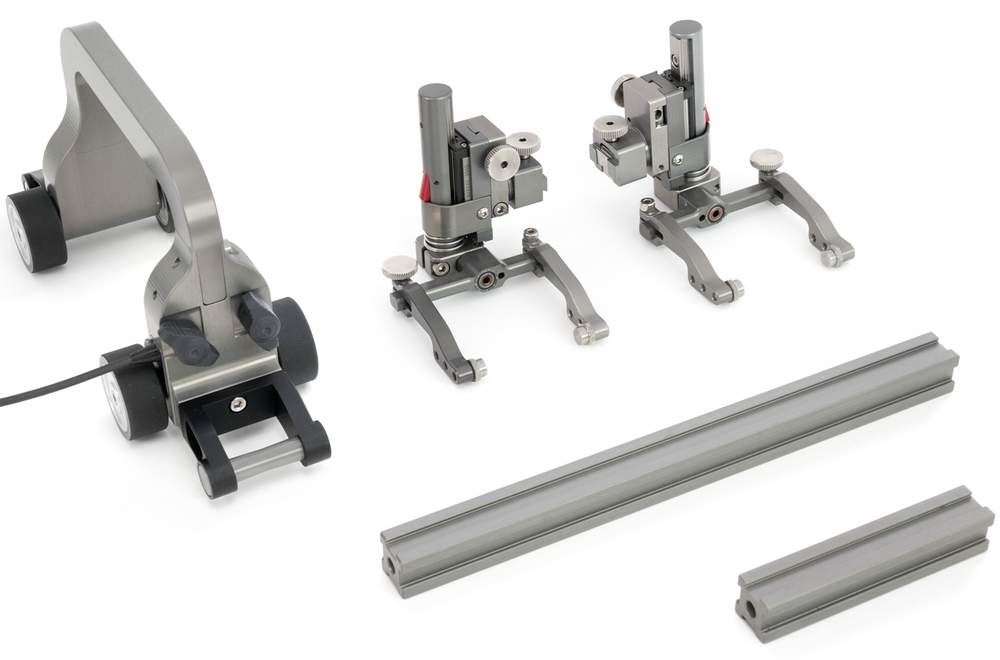

COMPONENTS
Reduced width ROTIX link, 5 m (16.4 ft) encoder cable
Vertical phased array probe holders x2
10 cm (3.9 in) frame bar
25 cm (9.8in) frame bar
Irrigation Kit: 4 mm ID, (7/16 in quick connect)
Probe holder spare parts kit
Cable Clip x2
User manual
Setup chart
Rugged carrying case
QUICKLINKS
30.5 cm (12 in) Diameter Kit - QuickLinks x6
61 cm (24 in) Diameter Kit - QuickLinks x17
96.5 cm (38 in) Diameter Kit - QuickLinks x30
Dovetail QuickLink x1
QuickLink Buckle x1
TOOLS
Hex Driver: 3 mm
3/8" Wrench for pivot button adjustment
Contents may vary depending on the configuration selected.
Component Idetification

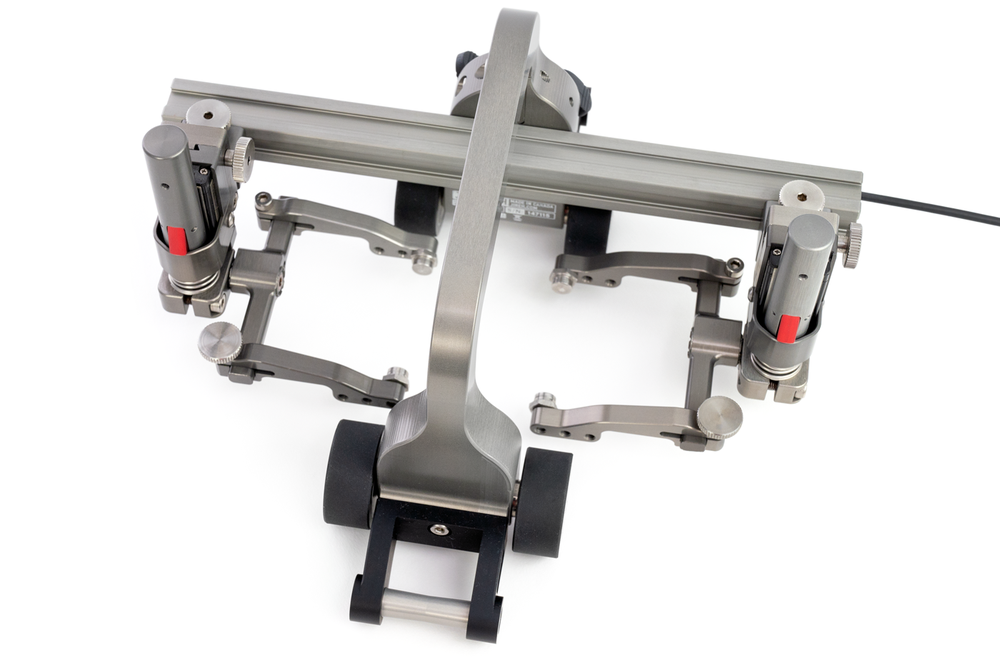

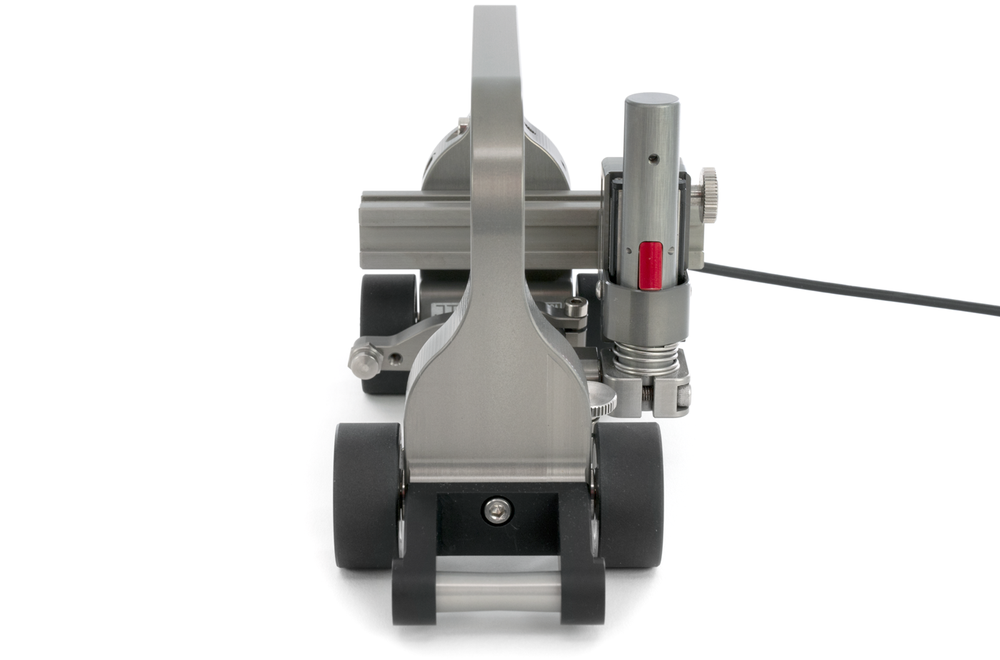

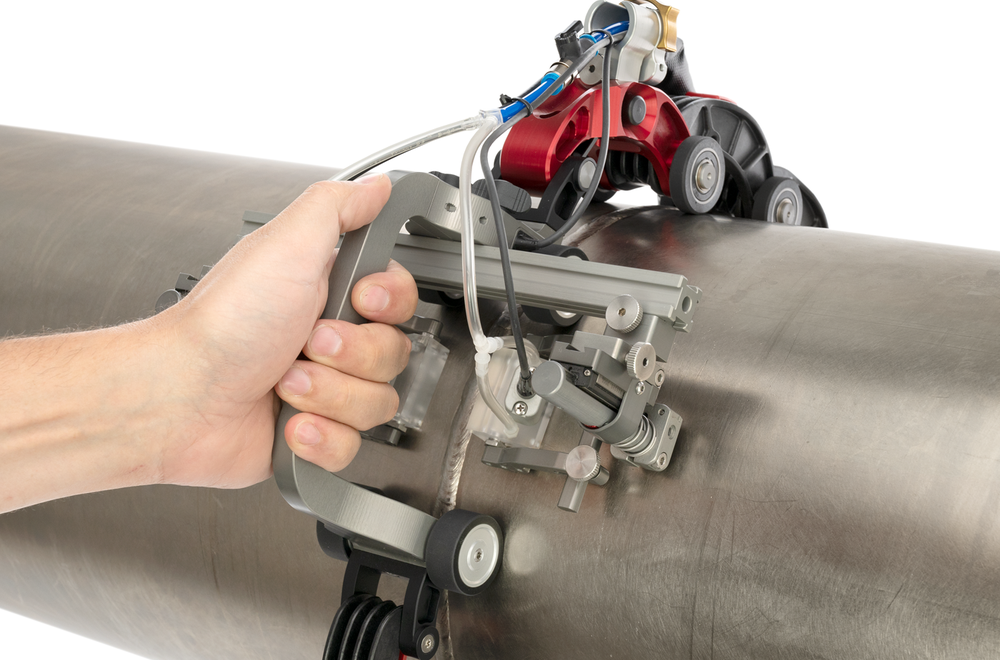

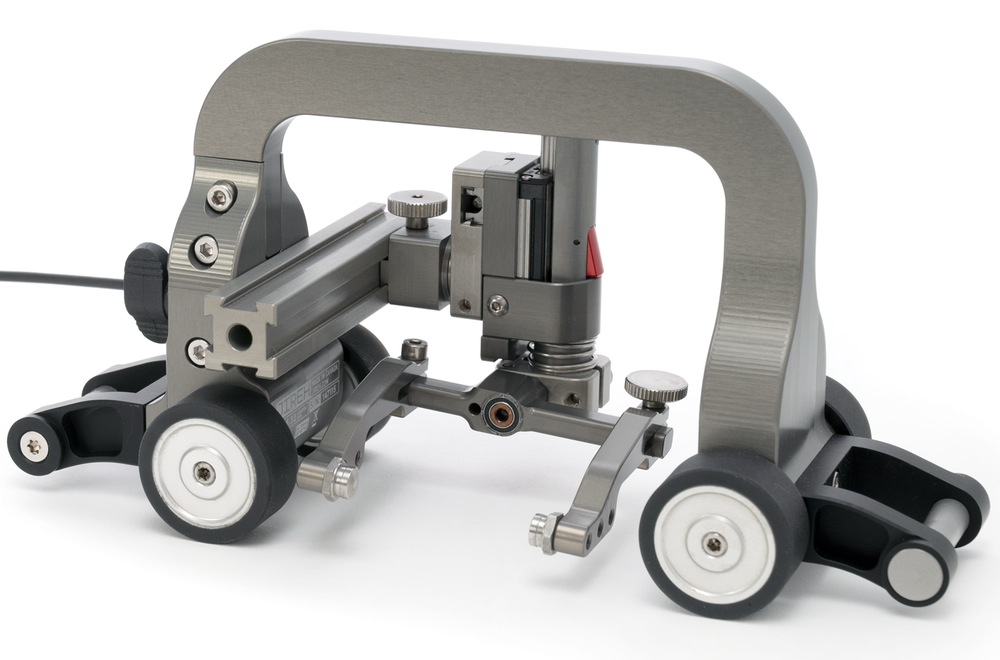

Reduced Width ROTIX Link
This link is designed to carry one or two probes, allowing you to inspect welds in between insulation and coatings. With the built-in encoder, you can effortlessly track positional information, ensuring precise data collection and analysis.
QuickLink Buckle
Effortlessly adjust chain tension to achieve optimal performance of your scanner. Not only that, but the QuickLink Buckle also serves as a reliable connection point for the QuickLinks.
Vertical Probe Holder
The vertical probe holder is designed to carry many different types of probes and wedges. Available with various types of yokes, arms and pivot buttons. The vertical probe holder features different adjustment options for each unique probe/wedge setup.

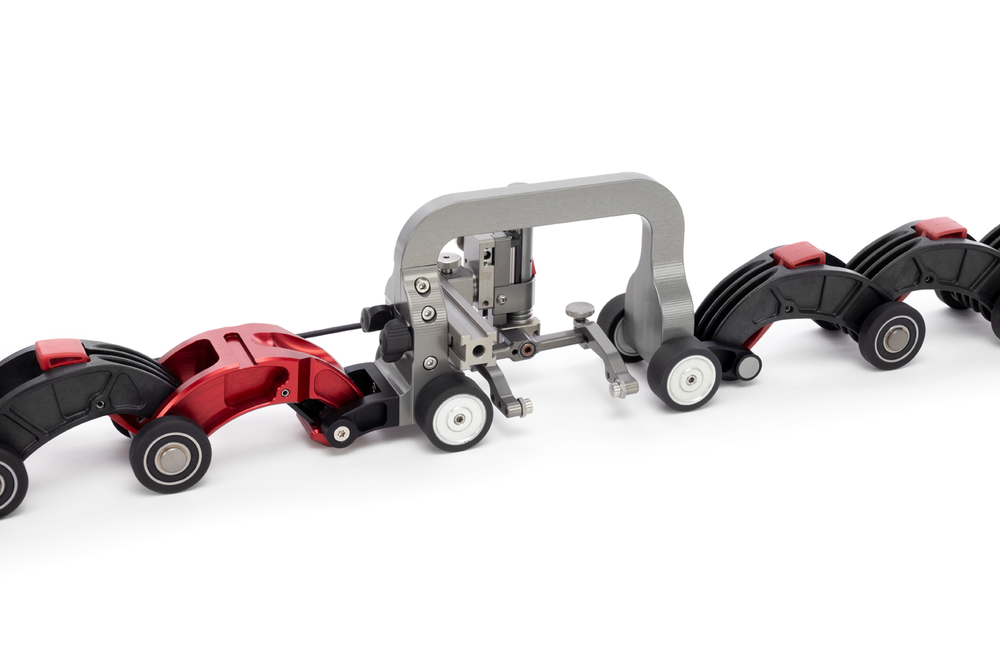

QuickLink
Achieve the perfect length for mounting your system on a pipe thanks to QuickLinks. These versatile links allow you to assemble the required length quickly, ensuring a secure and reliable chain configuration.
Dovetail QuickLinks
The Dovetail QuickLink helps you expand your chain configuration and is a versatile connector for accessories such as cable management.
Frame Bar
Whether you want to deploy one or two probes, this kit includes various lengths of frame bars, allowing you to choose the perfect size based on your specific needs.
Parts & Add-Ons
Related Products
Specifications
GENERAL
Pipe Range, Circumferential: 10.7 cm (4.2 in) to 96.5 cm (38 in)
Encoder Resolution: 16.3 counts/mm (414.5 counts/inch)
Probe Holding Capacity: 2 Phased Array Probes
Encoder Cable Length: 5 m (16.4 ft)1
Inspection Surface: Ferrous or non-ferrous material
RADIAL SCANNER CLEARANCE

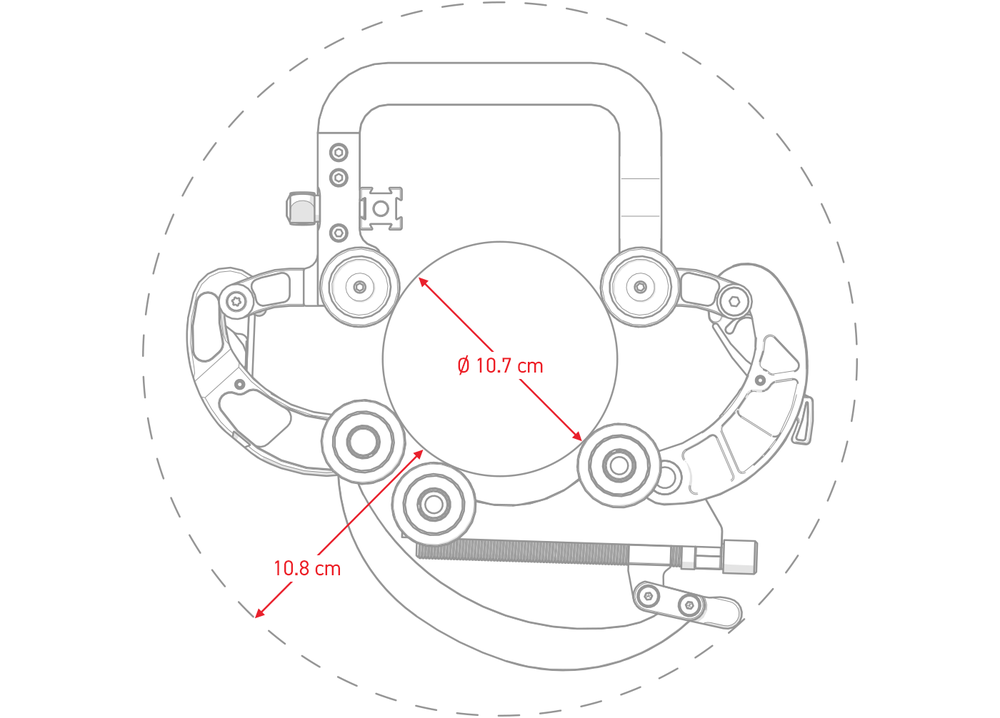

Radial Clearance: 10.8 cm (4.3 in)
SIZE & WEIGHT
Link Width (Single Probe): 10 cm (3.9 in)
Link Width (Two Probe): 25 cm (9.8 in)
Link Depth: 24.1 cm (9.5 in)
Link Height: 12 cm (4.7 in)
Link Weight: 0.64 kg (1.4 lb)2
Shipping weight: 6.62 kg (14.6 lb)3
ENVIRONMENTAL SPECIFICATIONS
Operating Environment: -20°C (-4°F) to 50°C (122°F)
Environmental Sealing: Watertight (submersible), Contact JIREH for details
PHASED ARRAY PROBE HOLDER SPECIFICATIONS
Minimum Wedge Width: 17 mm (0.67 in)
Maximum Wedge Width: 55.8 mm (2.2 in)4
Probe Holder Pivot Buttons
01
Pivot Hole Size: 8.0 mm (0.315 in)
Wedge Type: Olympus PA
Hex Size: 9.53 mm (3/8 in)
02
Pivot Hole Size: 5.0 mm (0.197 in)
Wedge Type: Olympus TOFD, Olympus A27 DMA
Hex Size: 9.53 mm (3/8 in)
03
Pivot Hole Size: 2.7 mm (0.106 in)
Wedge Type: Sonatest DAAH PH
Hex Size: 9.53 mm (3/8 in)
04
Pivot Hole Size: 9.5 mm (0.375 in)
Hex Size: 11.1 mm (7/16 in)
06
Pivot Hole Size: 3.0 mm (0.118 in)
Hex Size: 9.53 mm (3/8 in)
07
Pivot Hole Size: 2.3 mm (0.09 in)
Hex Size: 9.53 mm (3/8 in)
08
Pivot Hole Size: Conical Head
Hex Size: 9.53 mm (3/8 in)
09
Pivot Hole Size: 5 mm (0.197 in)
Wedge Type: Internal Zetec PA/TOFD, Phoenix TOFD
Hex Size: 9.53 mm (3/8 in)
11
Pivot Hole Size: 5.6 mm (0.221 in)
Hex Size: 9.53 mm (3/8 in)
- Custom umbilical lengths are available.
- Link weight does not include cabling, frame bar or probe holder(s).
- Approximate shipping weight of standard kit contents.
- Some arm styles may provide additional maximum wedge width. Contact Jireh Industries for details.
Technical specifications are subject to change.
