Achieve precise weld inspection

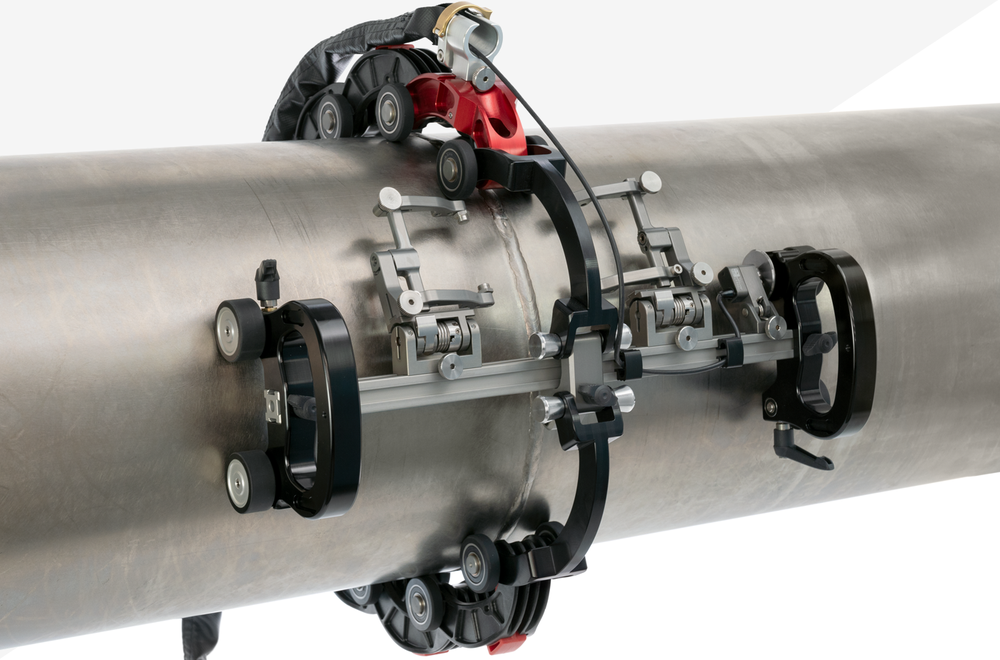

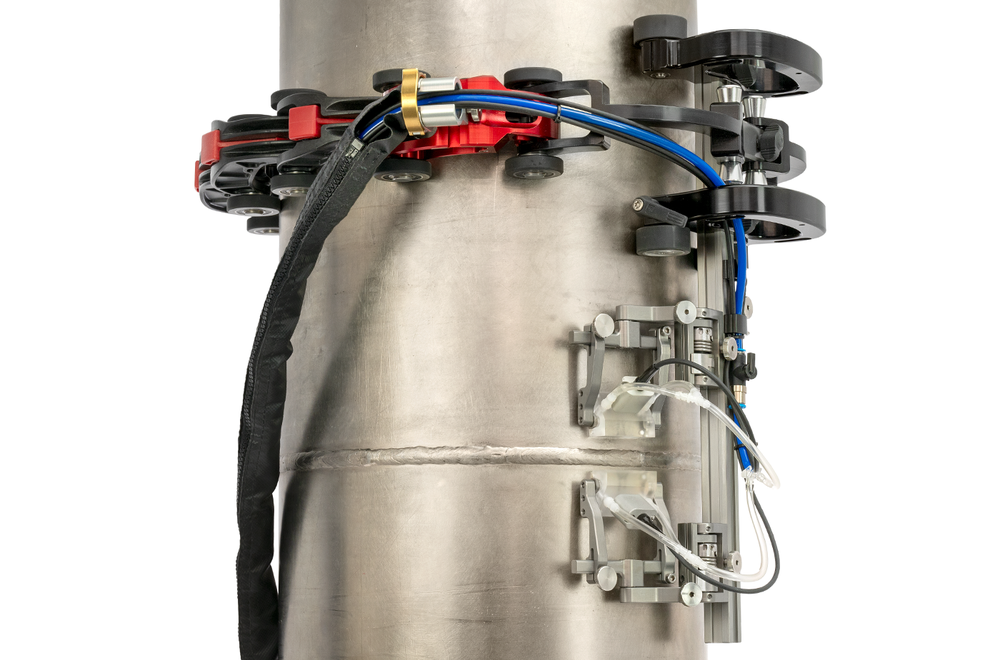

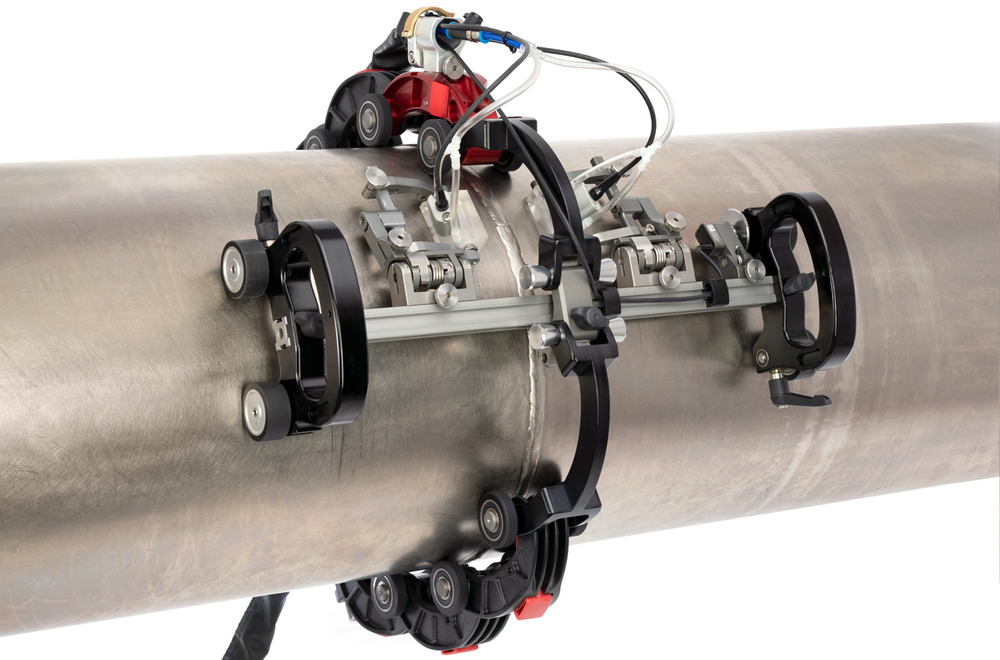

Experience precise encoded probe positioning with our advanced manual scanner, the ROTIX - Two Probe Weld Frame. Our system is specifically designed to smoothly move phased array probes around pipes, vessels and tanks, ensuring accurate and reliable inspections. Using our QuickLinks, you can quickly adapt the scanner to diameters ranging from 10.2 to 96.5 cm (4 to 38 in). Take your inspections to a new level of precision on non-ferrous and ferrous materials with the ROTIX.
Videos
FEATURES

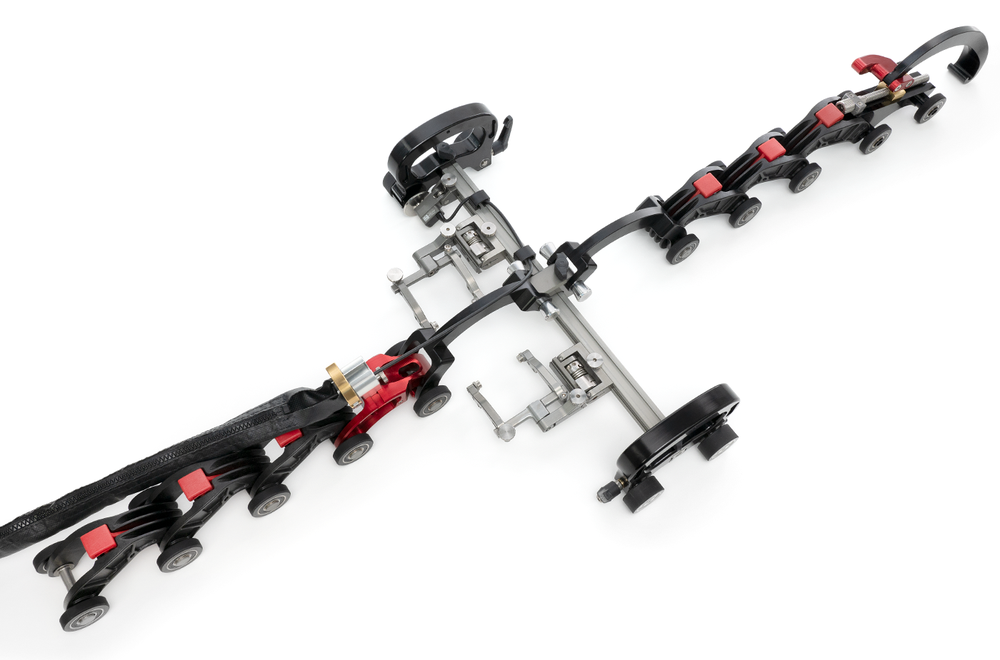

Adjustable QuickLink Chain
Using QuickLinks and an adjustable QuickLink buckle, pipes and tubes ranging from 12.6 - 96.5 cm (4.9 - 38 in) in diameter can be effortlessly scanned. Quicklinks facilitate swift and hassle-free connections, and assembling various chain configuration lengths is a breeze.
QuickLinks
Designed for ease of use and convenience, Quicklinks connect quickly and securely without complicated tools or lengthy processes. Just latch them together, and you're good to go. The user-friendly design also means you can effortlessly disconnect QuickLinks by pressing a button. No more struggling with complicated disassembly or dealing with frustrating connectors.
Brake
When required, prevent unwanted scanner movement.
Wheels
Enjoy smooth and consistent scanner travel with urethane wheels that minimize the impact of debris and prevent slippage during vertical applications.
Handles
The convenient handles offer scanner control and mounting points for accessories like cable management, making your scanning experience even more organized and comfortable.
Spring-Loaded Encoder
The spring-loaded encoder maintains contact with the scan surface, providing accuracy for scanner position. The encoder's output is fully compatible with most standard instruments, ensuring seamless integration into your existing setup.
Slip Joint Probe Holders
Achieve precise probe centre spacing and alignment with our versatile probe holders. Designed to accommodate most major phased array wedge types, these holders make it easy to adjust and fine-tune your setup for optimal performance and accuracy.
Cable Management
Our Cable Management provides durable protection for probe cables, irrigation tubes, and more. Its flexible, zippered material is resistant to low temperatures and offers high break strength, abrasion resistance, and flame-retardant properties. (Cable management sleeving is sold separately)
Modular Design
Transform your ROTIX into a magnetic STIX scanner effortlessly with our convenient conversion kits. This enables you to use one scanner for many applications, making it a versatile and cost-effective solution. Unlock the full potential of your JIREH scanners.
Warranty
At JIREH, we stand firmly behind the quality and reliability of our products. That's why we offer a limited 3-year warranty on all our products.

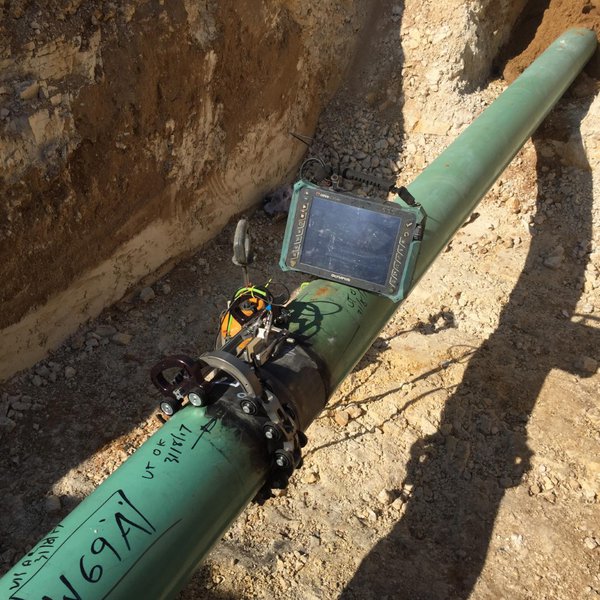

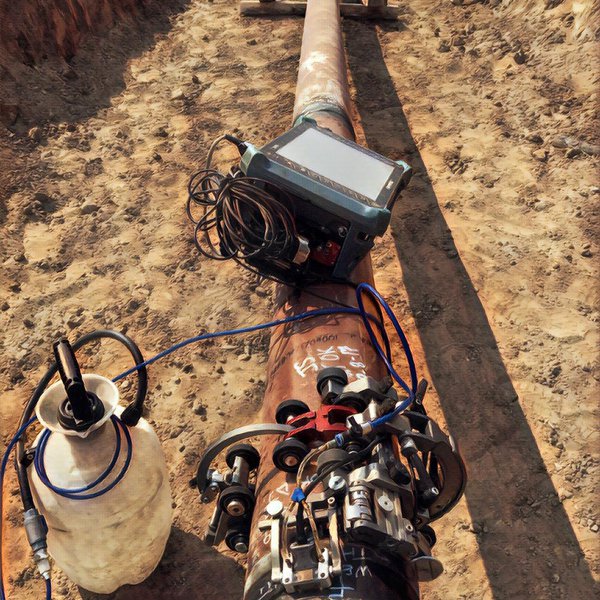

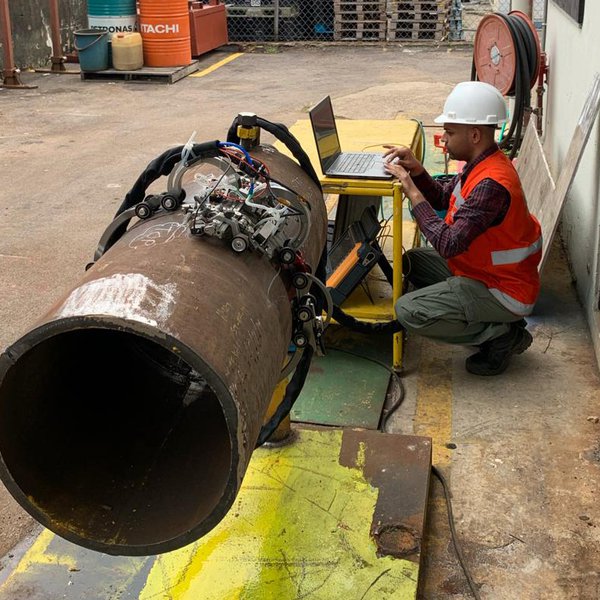

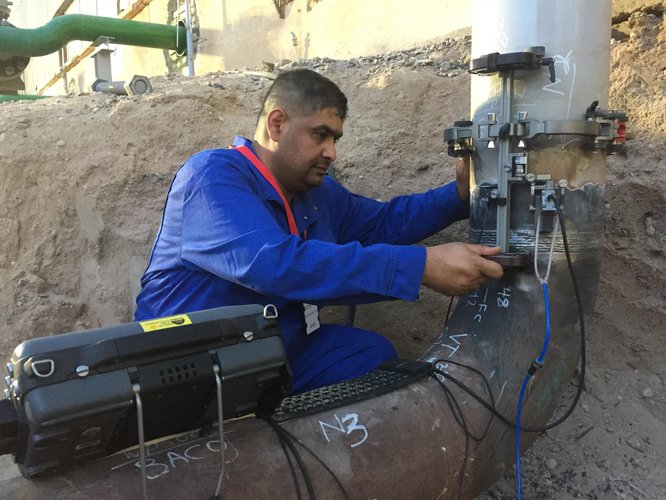

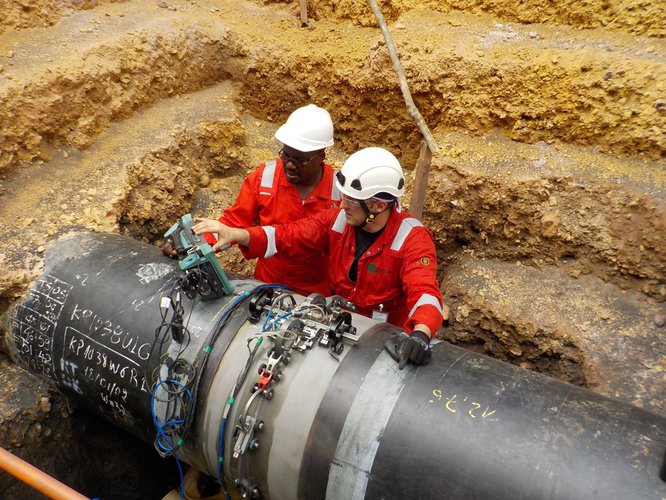

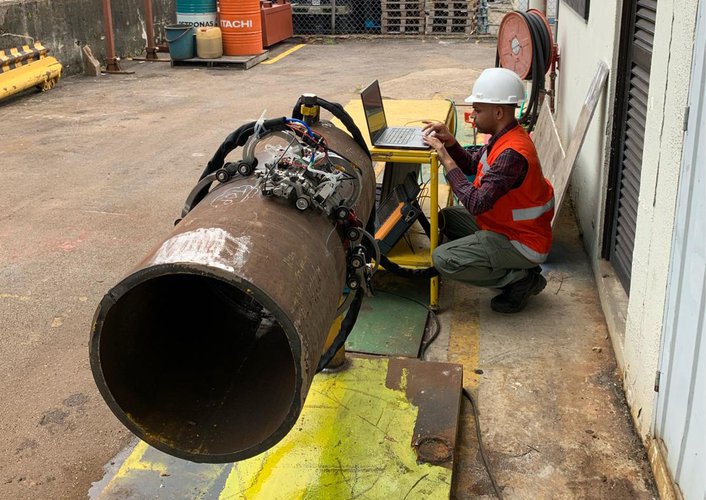

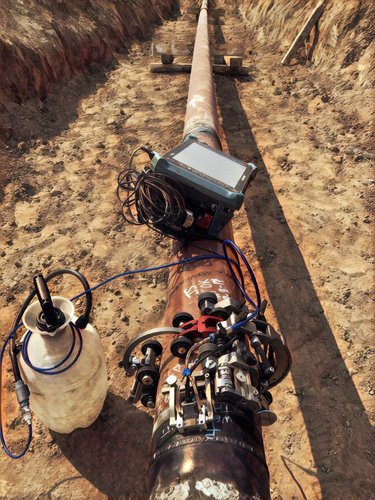

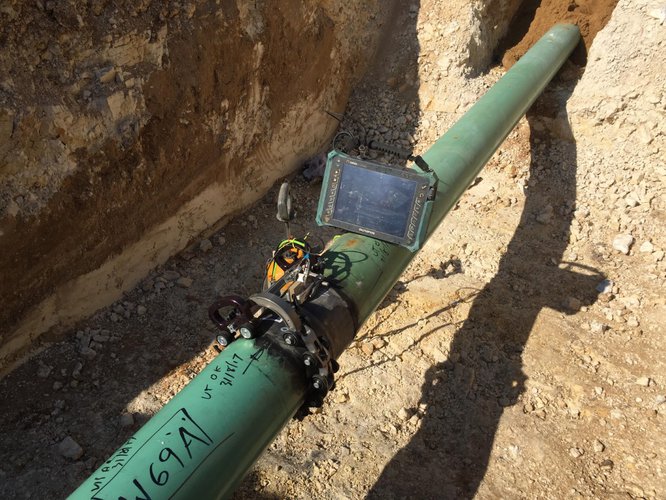

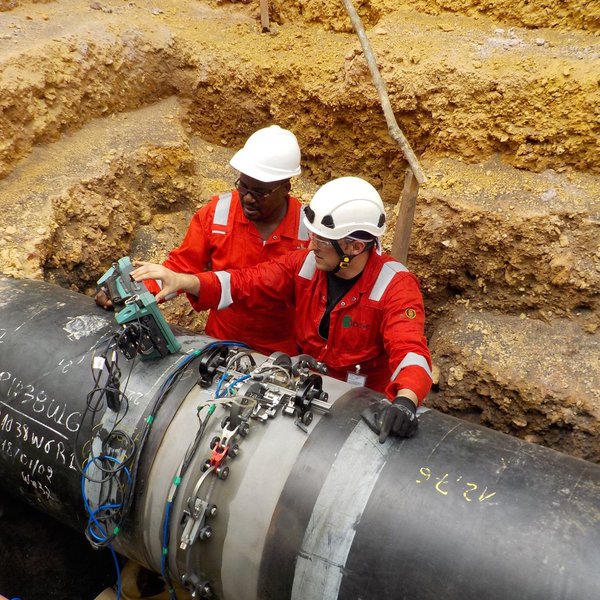

Customer Photos

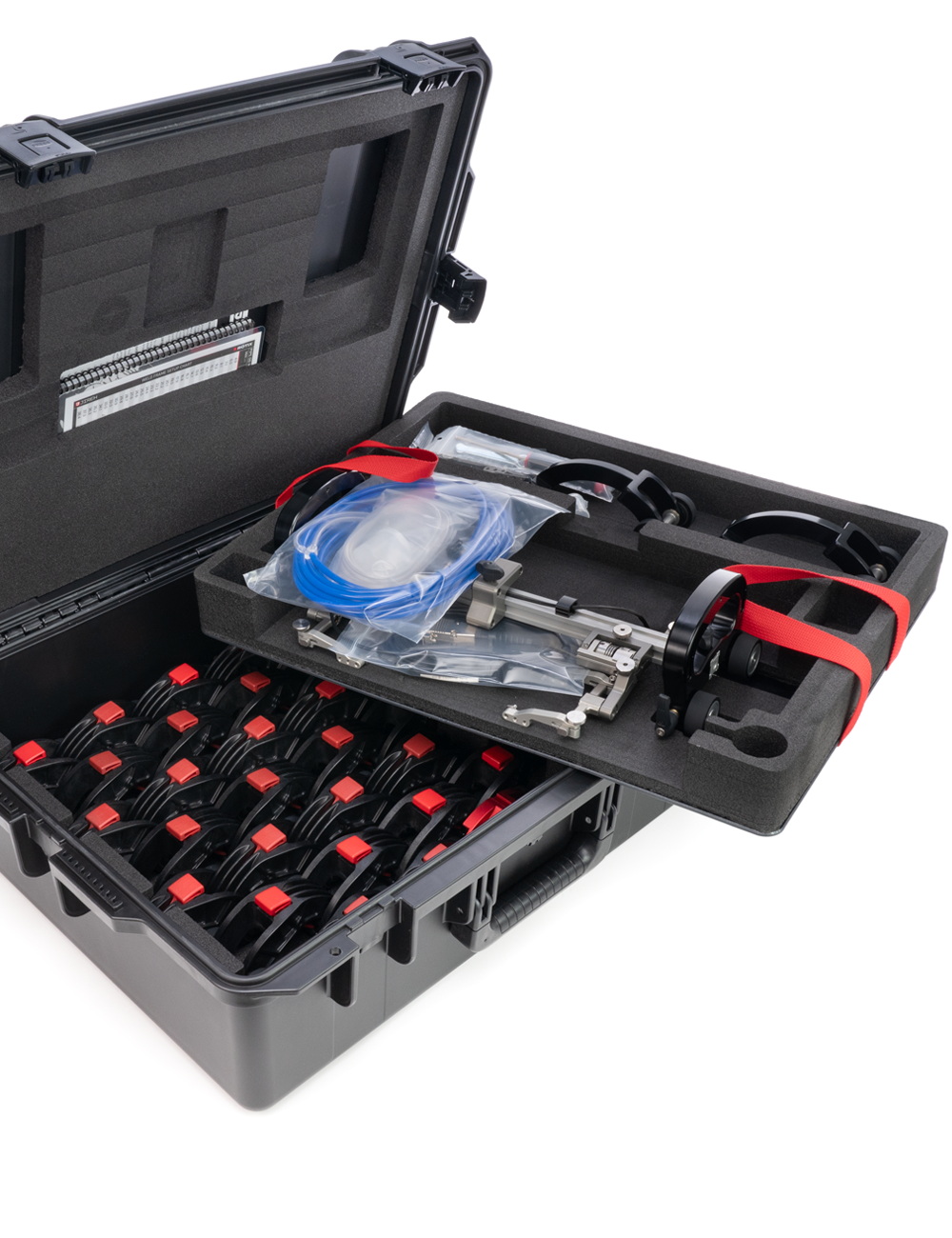

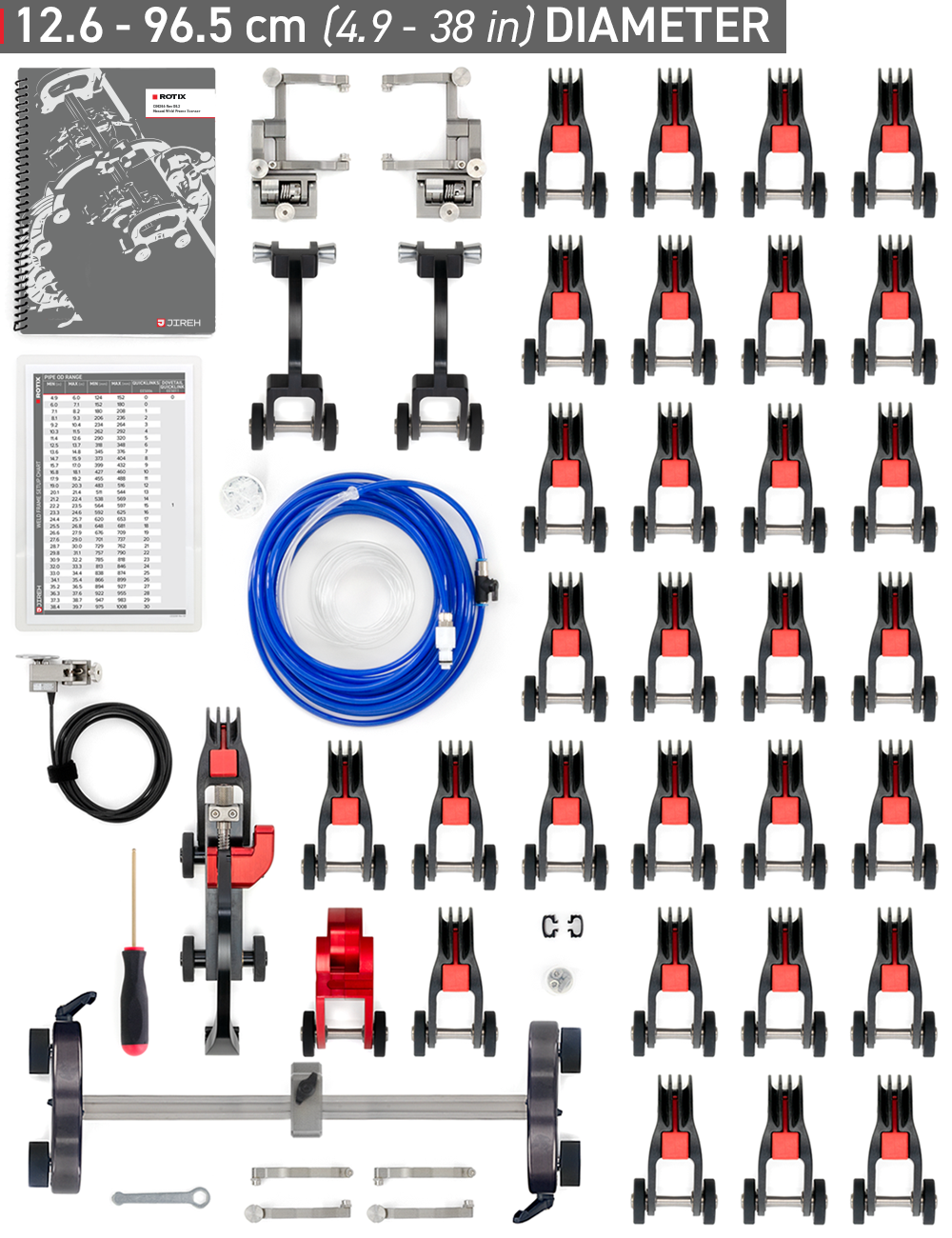

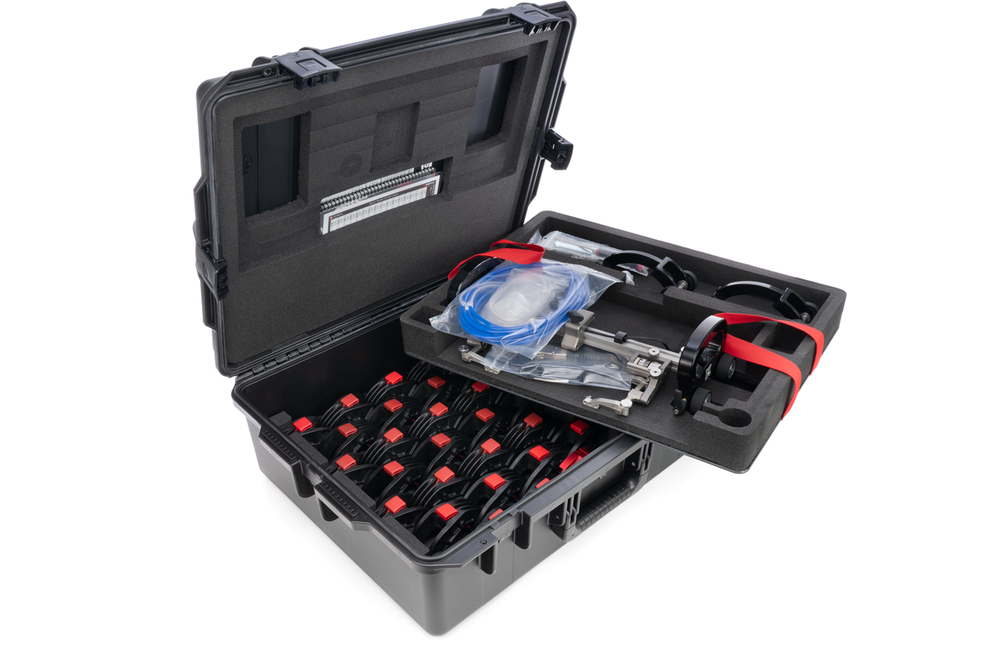

Kit Contents

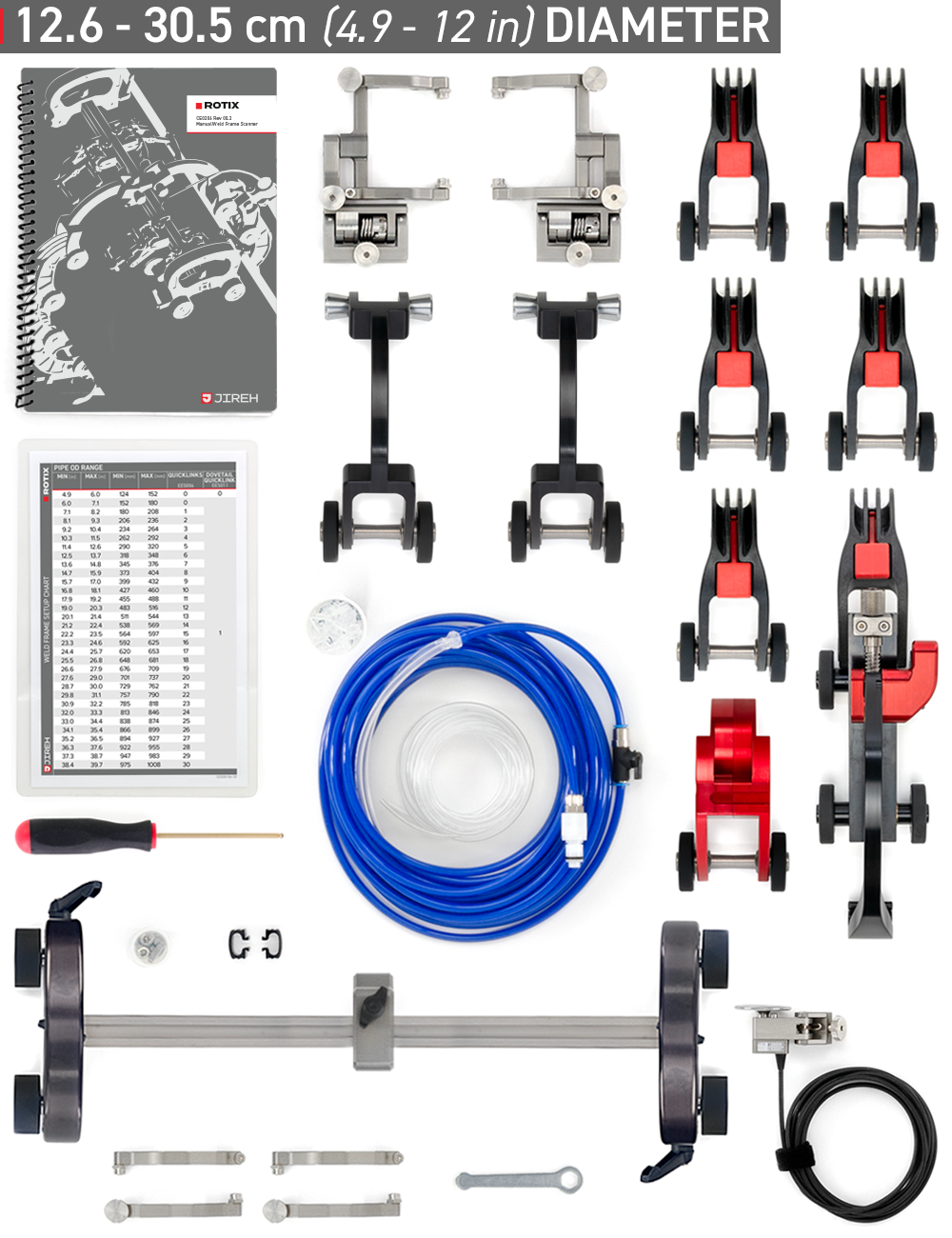

COMPONENTS
ROTIX frame with double chain mount
Standard overtop link x2
Spring-loaded encoder, 5 m (16.4 ft) length
Slip joint phased array probe holder x2
Probe Holder Arm Set: long drop arms x2
Irrigation Kit: 4 mm ID, (7/16 in quick connect)
Probe holder spare parts kit
Cable Clip x2
User manual
Setup chart
Rugged carrying case
QUICKLINKS
30.5 cm (12 in) Diameter Kit - QuickLinks x5
61 cm (24 in) Diameter Kit - QuickLinks x16
96.5 cm (38 in) Diameter Kit - QuickLinks x29
Dovetail QuickLink x1
QuickLink Buckle x1
TOOLS
Hex Driver: 3 mm
3/8" Wrench for pivot button adjustment
Contents may vary depending on the configuration selected.

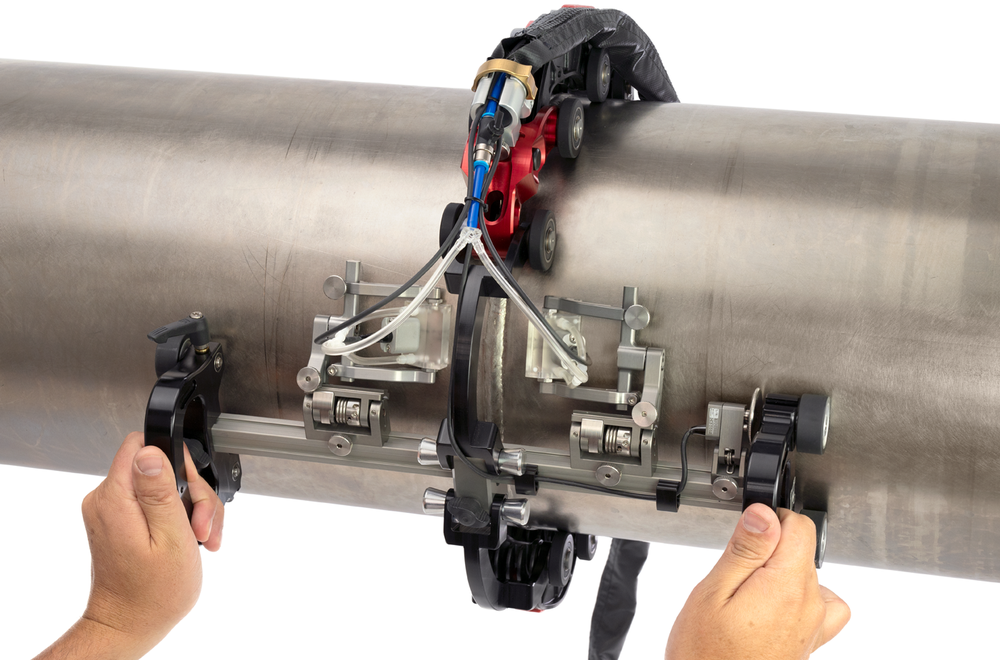

Component Identification
Standard Overtop Link
The standard overtop link is precisely engineered to attach to the double chain mount of the ROTIX frame. It extends over the slip joint probe holders and securely connects to the QuickLinks.
QuickLink
Achieve the perfect length for mounting your system on a pipe thanks to QuickLinks. These versatile links allow you to assemble the required length quickly, ensuring a secure and reliable chain configuration.

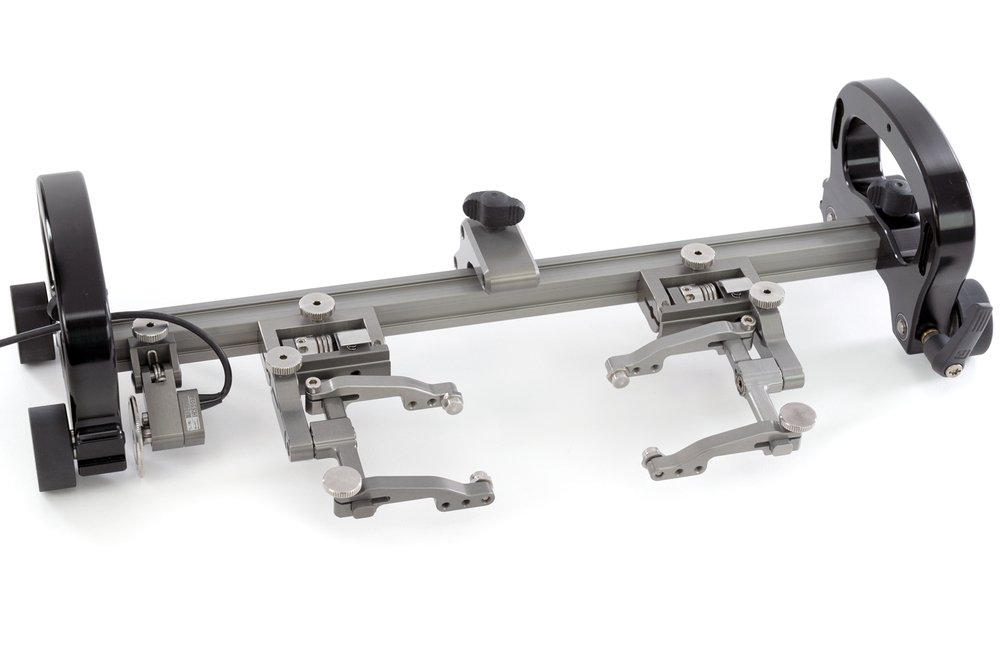

ROTIX Weld Frame
The frame is thoughtfully designed with ergonomic handles, brakes, and a dovetail frame bar. The frame bar makes it easy to attach all necessary components and accessories, ensuring convenience and efficiency during operation. Additionally, the smooth urethane wheels of the ROTIX Weld Frame provide stability and allow for smooth rolling and effectiveness during weld inspection tasks.
Dovetail QuickLink
The Dovetail QuickLink helps you expand your chain configuration and is a versatile connector for accessories such as cable management.
Spring-Loaded Encoder
The spring-loaded encoder ensures constant contact pressure with the scan surface. This feature is crucial for accurate and reliable positional feedback. You can conveniently position the encoder along the frame bar, and it can be connected to any standard instrumentation, making it compatible with a wide range of devices.
QuickLink Buckle
Effortlessly adjust chain tension to achieve optimal performance of your scanner. Not only that, but the QuickLink Buckle also serves as a reliable connection point for the QuickLinks.
Cable Clip
Cable Clips provide a secure and organized way to manage cables and hoses. They easily mount onto any frame bar's dovetail groove, allowing for a firm and reliable attachment and preventing cables from getting tangled or becoming a hindrance during operations.
Slip Joint Probe Holder
The Slip Joint Probe Holder is designed to mount seamlessly to the ROTIX frame bar, offering easy positioning wherever needed. These spring-loaded probe holders are equipped with multiple adjustments, allowing you to position the wedge of your choice precisely as required. Many pivot button options are available to mount to your specific transducer.
Parts & Add-Ons
4 mm ID Irrigation Kit (7/16 in Quick Connect)
Cable Clip Kit
Cable Management, Dovetail Mount
Dovetail QuickLink
Manual Couplant Pump - 7.9 L (2.1 gal.)
QuickLink
QuickLink Buckle
TOFD Slip Joint Probe Holders
Related Products
Specifications
GENERAL
Pipe Range, Circumferential: 12.4 - 96.5 cm (4.9 - 38 in)
Encoder Resolution: 9.05 counts/mm (230.0 counts/in)
Probe Holding Capacity: 2 Phased Array Probes
Encoder Cable Length: 5 m (16.4 ft)1
Inspection Surface: Ferrous or non-ferrous materials

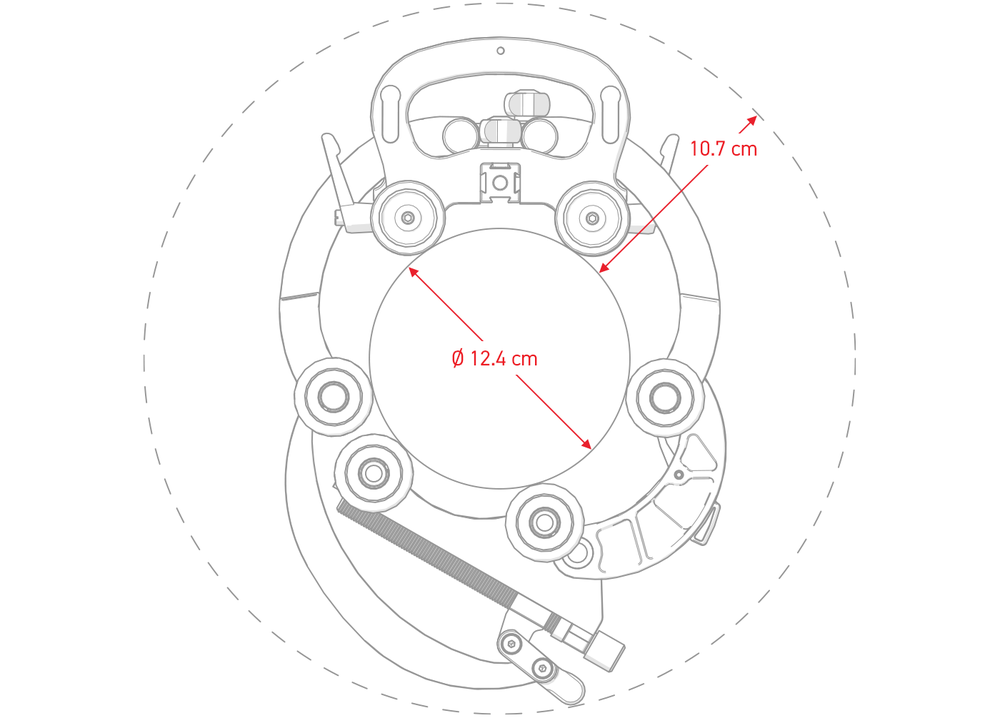

RADIAL CLEARANCE
Radial Scanner Clearance: 10.7 cm (4.2 in)

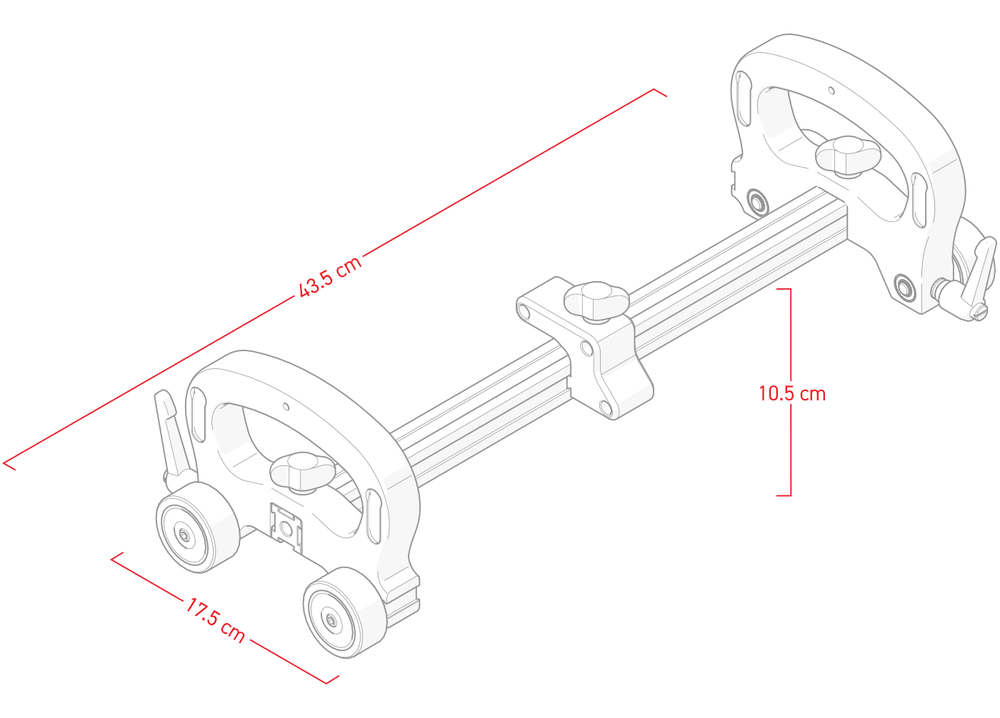

SIZE & WEIGHT
Frame Height: 10.5 cm (4.1 in)
Frame Width: 43.5 cm (17.1 in)
Frame Depth: 12.5 cm (4.9 in)
Frame Weight: 1.4 kg (3.1 lb)
ENVIRONMENTAL SPECIFICATIONS
Operating Environment: -20°C (-4°F) to 50°C (122°F)
Environmental Sealing: Watertight (submersible), Contact JIREH for details
PHASED ARRAY PROBE HOLDER SPECIFICATIONS
Minimum Wedge Width: 17 mm (0.67 in)
Maximum Wedge Width: 55.8 mm (2.2 in)2
Probe Holder Pivot Buttons
01
Pivot Hole Size: 8.0 mm (0.315 in)
Wedge Type: Olympus PA
Hex Size: 9.53 mm (3/8 in)
02
Pivot Hole Size: 5.0 mm (0.197 in)
Wedge Type: Olympus TOFD, Olympus A27 DMA
Hex Size: 9.53 mm (3/8 in)
03
Pivot Hole Size: 2.7 mm (0.106 in)
Wedge Type: Sonatest DAAH PH
Hex Size: 9.53 mm (3/8 in)
04
Pivot Hole Size: 9.5 mm (0.375 in)
Hex Size: 11.1 mm (7/16 in)
06
Pivot Hole Size: 3.0 mm (0.118 in)
Hex Size: 9.53 mm (3/8 in)
07
Pivot Hole Size: 2.3 mm (0.09 in)
Hex Size: 9.53 mm (3/8 in)
08
Pivot Hole Size: Conical Head
Hex Size: 9.53 mm (3/8 in)
09
Pivot Hole Size: 5 mm (0.197 in)
Wedge Type: Internal Zetec PA/TOFD, Phoenix TOFD
Hex Size: 9.53 mm (3/8 in)
11
Pivot Hole Size: 5.6 mm (0.221 in)
Hex Size: 9.53 mm (3/8 in)
- Custom encoder cable lengths are available.
- Some arm styles may provide additional maximum wedge width. Contact Jireh Industries for details.
Technical specifications are subject to change.
Documents
To download the user manuals, setup charts, and additional documentation for the scanner, click the appropriate link below.
(specifications are subject to change)
