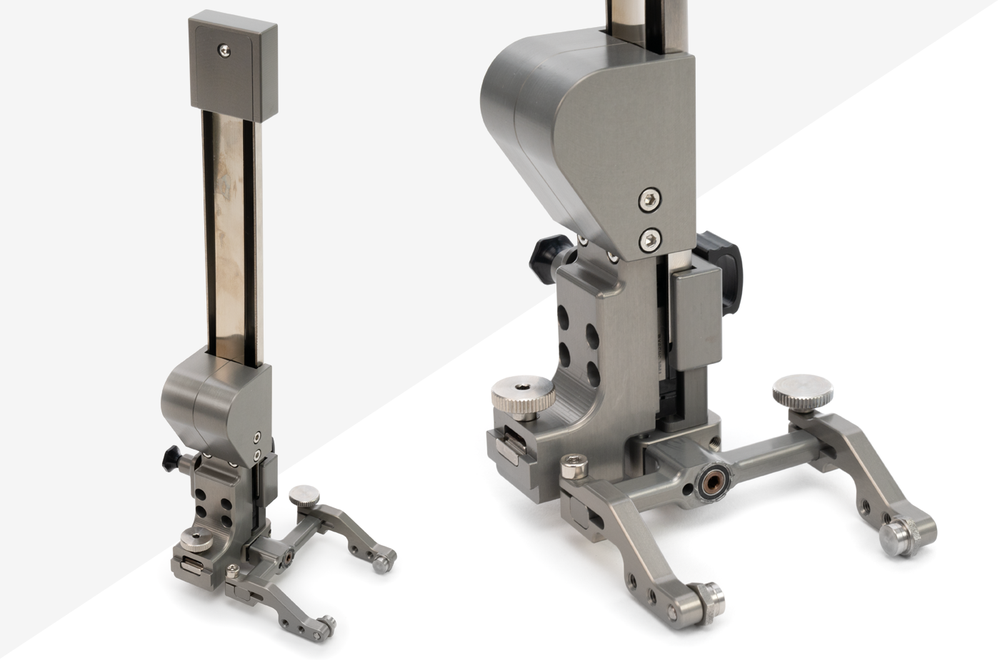

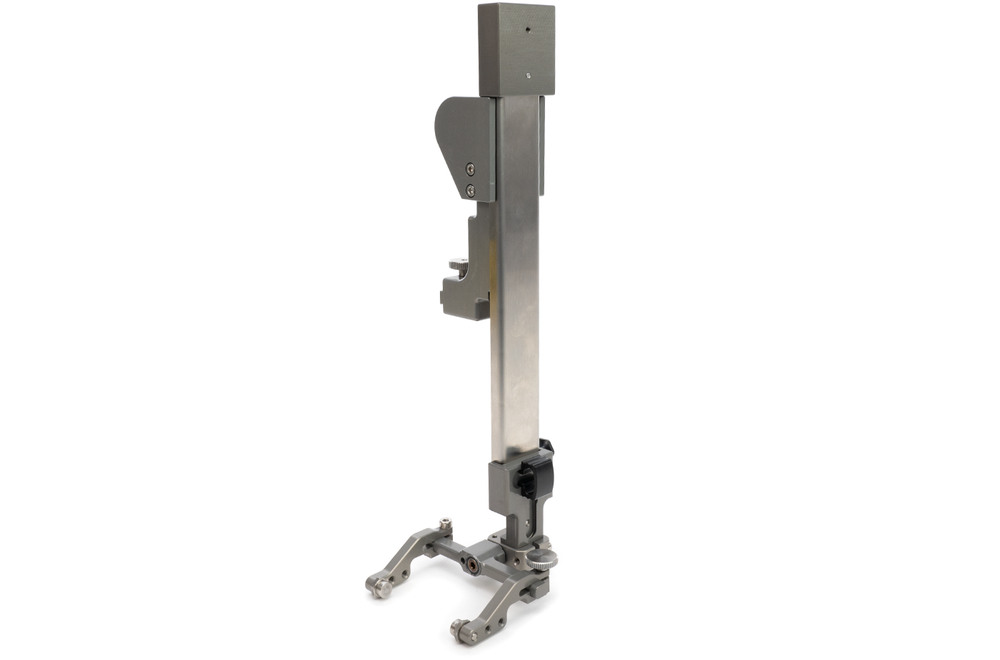

The Medium Stroke Vertical Probe Holder provides 12.2 cm (4.8 in) of vertical probe holding travel, allowing for seamless scanning of uneven surfaces with precision.
Arm style specifications
A - Standard, Flat
B - Short, Flat
C - Long, Flat
D - Standard, Drop
E - Short, Drop
F - Long, Drop
G - Standard, Extra-Drop
H - Short, Extra-Drop
I - Extra-Short, Flat
J - Extra-Short, Drop
probe holder specifications
PHASED ARRAY PROBE HOLDER
Minimum Wedge Width: 10.5 mm (0.41 in)
Maximum Wedge Width: 48.3 mm (1.9 in)1
Probe Holder Pivot Buttons
01
Pivot Hole Size: 8.0 mm (0.315 in)
Wedge Type: Olympus PA
Hex Size: 9.53 mm (3/8 in)
02
Pivot Hole Size: 5.0 mm (0.197 in)
Wedge Type: Olympus TOFD, Olympus A27 DMA
Hex Size: 9.53 mm (3/8 in)
03
Pivot Hole Size: 2.7 mm (0.106 in)
Wedge Type: Sonatest DAAH PH
Hex Size: 9.53 mm (3/8 in)
04
Pivot Hole Size: 9.5 mm (0.375 in)
Hex Size: 11.1 mm (7/16 in)
06
Pivot Hole Size: 3.0 mm (0.118 in)
Hex Size: 9.53 mm (3/8 in)
07
Pivot Hole Size: 2.3 mm (0.09 in)
Hex Size: 9.53 mm (3/8 in)
08
Pivot Hole Size: Conical Head
Hex Size: 9.53 mm (3/8 in)
09
Pivot Hole Size: 5 mm (0.197 in)
Wedge Type: Internal Zetec PA/TOFD, Phoenix TOFD
Hex Size: 9.53 mm (3/8 in)
11
Pivot Hole Size: 5.6 mm (0.221 in)
Hex Size: 9.53 mm (3/8 in)
- Some arm styles may provide additional maximum wedge width. Contact Jireh Industries for details.
Technical specifications are subject to change.
