Probe Holder Receptacle
Choose the receptacle diameter or receptacle type that matches the size/type of probe to be used.
(Contact JIREH to request custom receptacle sizes)

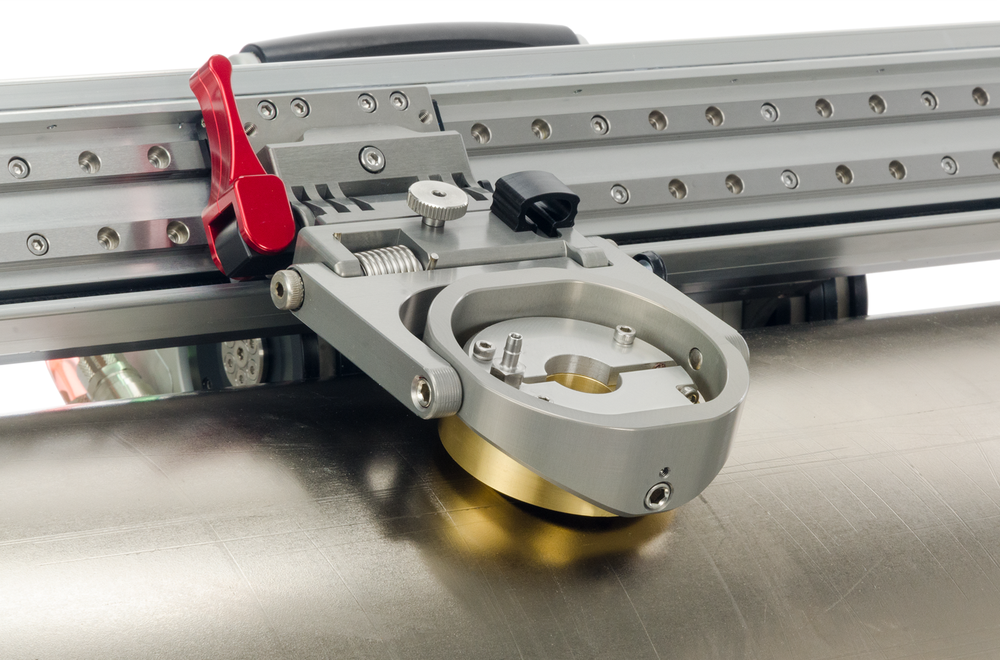

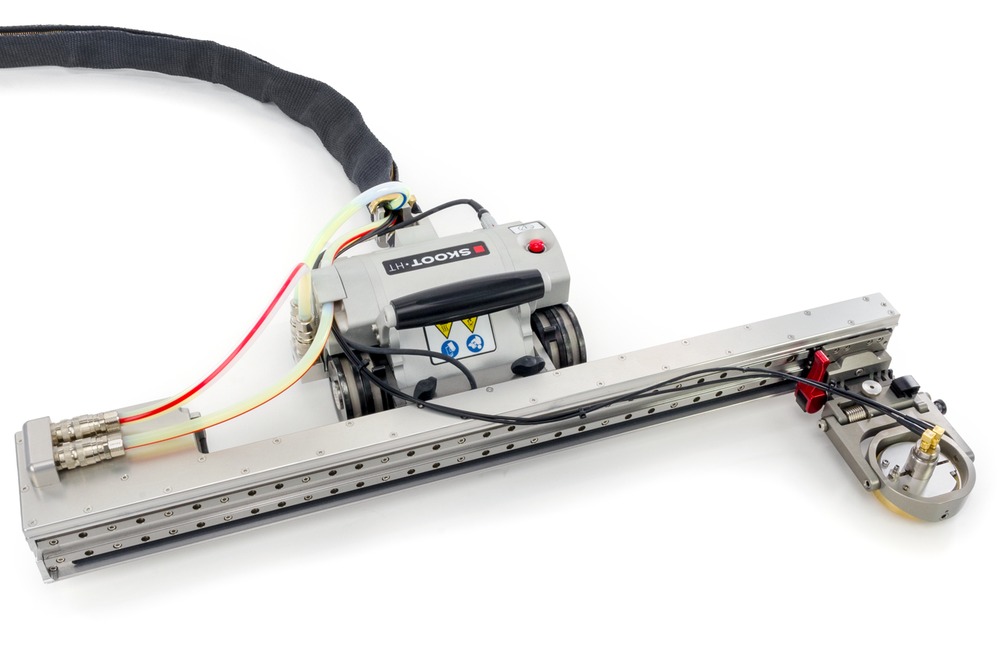

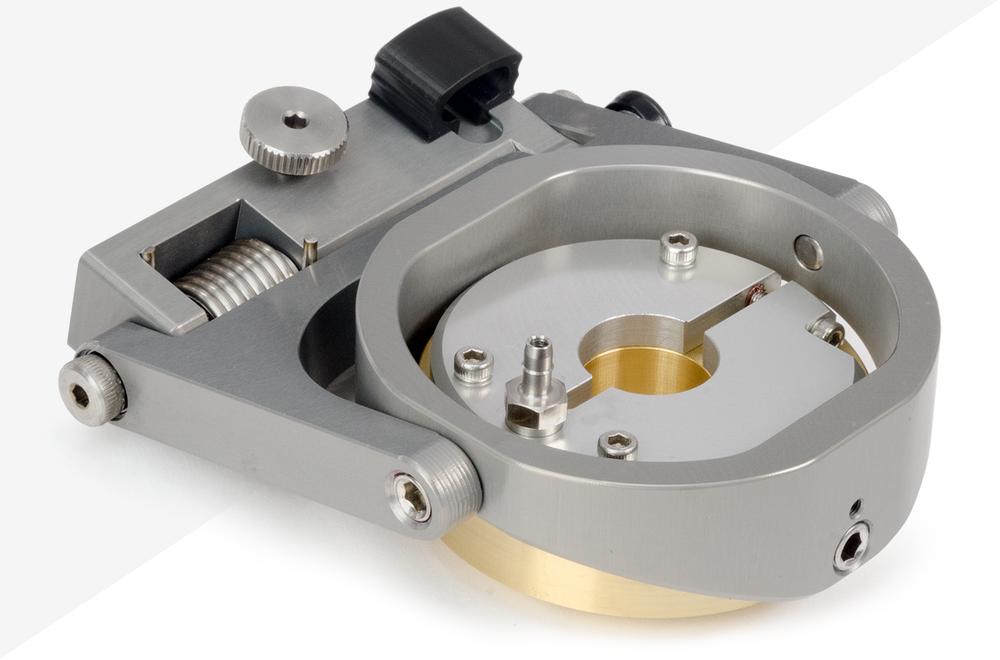

Designed for use with the HT Raster Arm and SKOOT • HT. The Corrosion Thickness Probe Holder HT - Flat Wear Plate assists with corrosion mapping (C-scans, or automated two-axis scans) during high temperature inspection up to 350°C (662°F).
Dimensions
Receptacle Width and Wear Plate

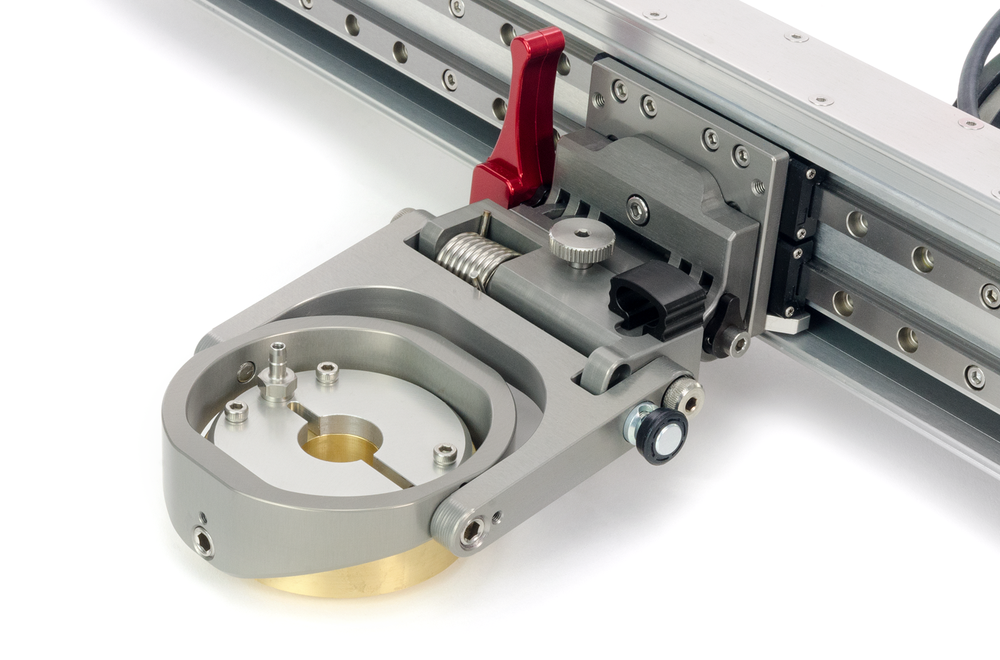

C - 19 mm (0.75 in) receptacle diameter - Flat wear plate

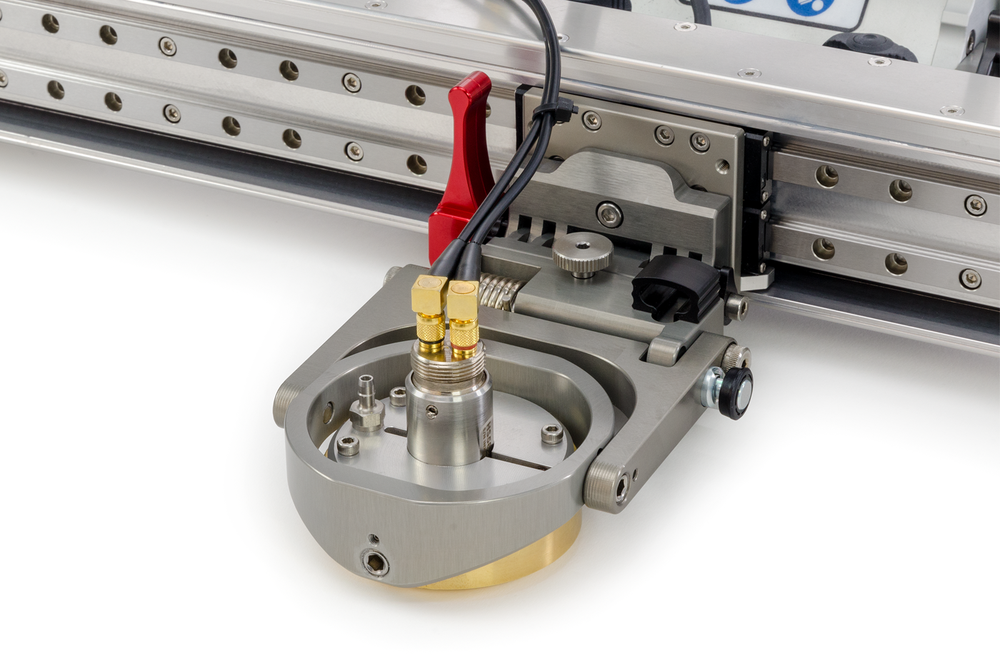

J - 21 mm (8.25 in) receptacle diameter - Flat wear plate (Compatible with ionix)
Dimensions
A - 104.08 mm (4.10 in)
B - 46.33 mm (1.82 in)
C - 38.28 mm (1.51 in)
D - 76.66 mm (3.02 in)
E - 117.27 mm (4.62 in)
F - 38.28 mm (1.51 in)
G - 32.77 mm (1.29 in)
